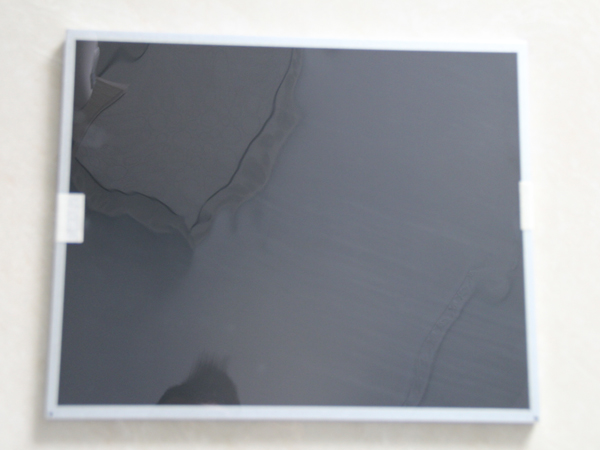

P170etn01.0 basic parameters

Manufacturer Youda /auo

Model p170etn01.0

Screen size 17.0“

Resolution 1280 × 1024

Resolution name SXGA

Display scale 5:4

Pixel arrangement RGB vertical strip

Pixel pitch 0.088 × 0.264 mm

Panel composition LCD,

Panel type (Technology) a-Si TFT LCD

Main applications [computer display],

Panel features [wide color range], [white LED], [fog surface], [wide view],

P170etn01.0 photoelectric parameters

Display mode TN, normally white, transmission

Luminance 250 nits

Contrast ratio 1000:1

Color 16.7M

Color saturation 72% NTSC (CIE1931)

Response time (response) 3.8/1.2 (tr/td) MS

Viewing angle 80 / 80 / 85 / 85 (up / down / left / right)

The best view 6 o'clock

White field chroma x:0.313; y:0.329

White field dynamic 1.25 (9 points)

Scanning frequency 60Hz

Reverse scan no

The kind of single LVDS

Interface type LVDS

Single interface definition ble-6pins-ccaacc

Drive screen voltage 5.0V

Panel input current 0.6A

Kind of signal interface terminal

Brand of signal interface E & T

Model of single interface al230f-a0g1d-p

Pitch of single interface 1 mm

Pin of single interface 6 pins

P170etn01.0 structural parameters

Operation temperature 0 ° C to 50 ° C

Storage temperature - 20 ° C to 60 ° C

Surface technology fog, hard coating (3H)

Active area 337.92 × 270.336 mm

Display area 341.72 × 274.14

Outline 358.50 × 296.50 × 7.70 mm

Touch panel no

Lamp position side entry light source (bottom)

Backlight type WLED

Lamp number 9s4p PCs

Lamp shape 4 strings

Life time of lamp 30K hours

Voltage of lamp 28.8v

Current of lamp 60mA

Driver of backlight none

King of backlight interface terminal

Brand of backlight interface E & T

Model of backlight interface 3707k-s06n-21r

Quantity of backlight interface 1 pcs

Pitch of backlight interface 1.0 mm

Backlight interface definition ble-6pins-ccaacc

P170etn01.0 packaging and production status

Quantity per box 8 pcs

Size of the box 434 × 278 × 390 mm (L × w × h)

G.W. of the box 13.45 kg
