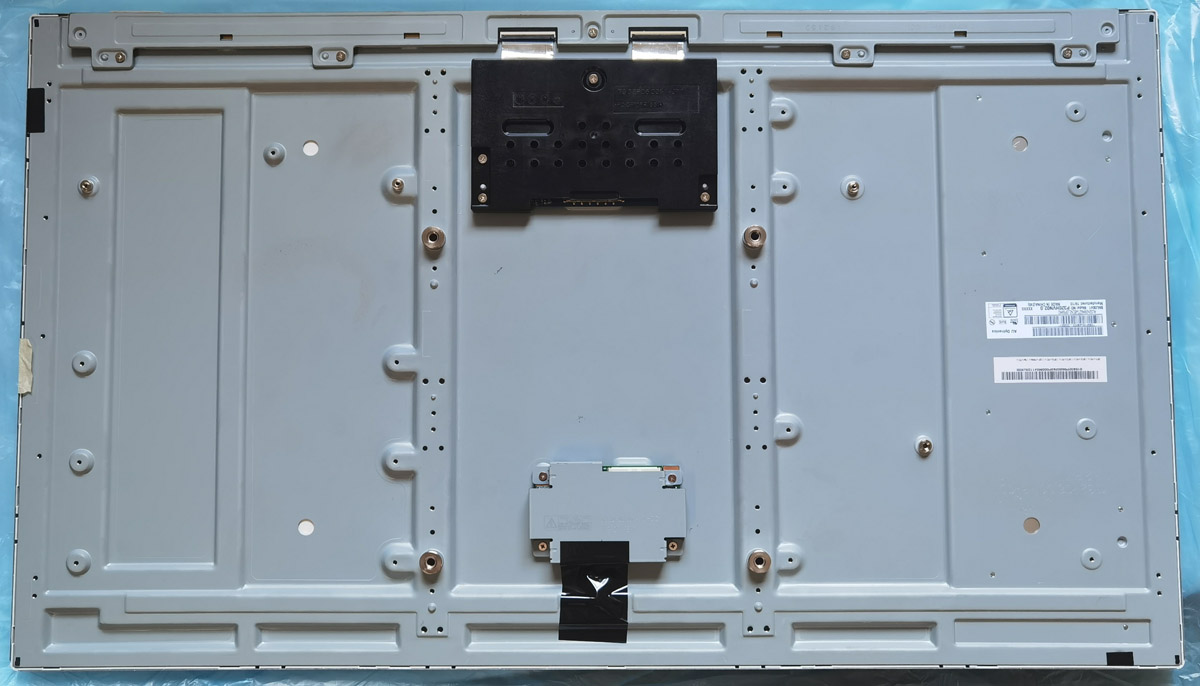

AUO's p320hvn02.0 is a 32.0-inch LCD module with a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight drive and touch-free. Screen library summarizes its typical features as follows: sRGB, landscape mode / portrait mode, white LED backlight, life more than 50000 hours, including LED driver, surface fog. Its working temperature is 0 ~ 50 ° C, storage temperature is - 20 ~ 60 ° C, vibration resistance is 1.0g (9.8 m / S 2). This model is recommended for digital signage. According to the information of screen library, the product was mass produced in Q4 in 2014, and the current production status is in mass production. At present, p320hvn02.0 has 21 pieces of spot information and 18 suppliers' information on the screen library, which is the main model product in the screen library market. The screen library established parameters for this model for the first time on April 30, 2014, and finally updated the parameters on September 27, 2019. As an amva3, constant black display, transmission LCD module product, p320hvn02.0 can provide 500 CD / m2 display brightness, 3000:1 transmission contrast, and 89 / 89 / 89 (typ.) (CR ≥ 10) (L / R / U / D) viewing angle. The best viewing angle is full viewing angle, and its response time is 8 (typ.) (g to g) Ms. Because each pixel uses 8-bit gray scale signal, the product can display 16.7M colors, and the color saturation is 99% (sRGB). In terms of backlight, this product adopts WLED side entry light source, with a service life of 50K hours, including LED driver. P320hvn02.0 adopts LVDS (2 CH, 8-bit) signal interface, with a total of 51 pins, terminal connection, and screen driving voltage of 12.0V (typ.). Its typical vertical refresh rate FV is 60Hz. If you want to use the p320hvn02.0 LCD module in the development of new products, we suggest that you ask AUO or its agent for the latest production status and technical information about p320hvn02.0. The panel parameters displayed on the screen library are all entered by the electronic engineer of the screen library according to the specification. The error has been reduced as much as possible, but the parameters are not completely correct. Please refer to the specification!
