• Brand：友达AUO
• Size：15寸方屏
• Model：G150XVN01.1
• Resolution：1024×768
• Vision：85/85/85/85
• Contrast：1500:1
• brightness：300 cd/m²
• interface：30 pins
• Operating temperature：-10~ 70 °C 存储温度: -30 ~ 70 °C
• life：2 pcs CCFL , 50K小时
• Types of：CCFL

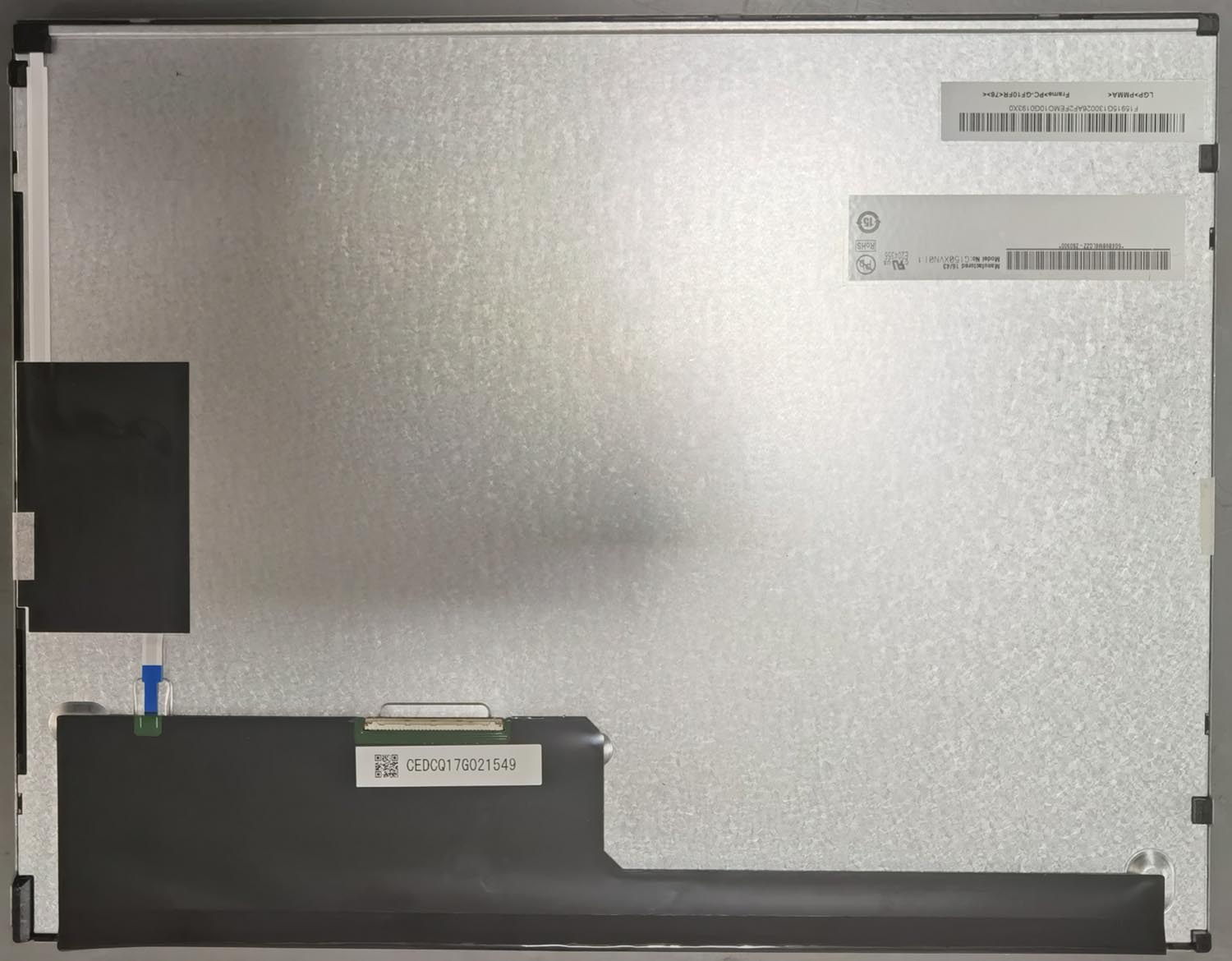

G150XVN01.1 is a 15.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. As an MVA, normally black display, and transmissive LCD module product, G150XVN01.1 can provide a display brightness of 300 cd/m ² with a transmission contrast ratio of 1500:1, as well as a viewing angle of 85/85/85 (Typ.) (CR ≥ 10) (L/R/U/D). The optimal viewing angle is full view angle, and its response time is 20/15 (Typ.) (Tr/Td) ms. Due to the use of 6-bit/6-bit FRC grayscale signals for each pixel, this product can display 262K/16.2M colors with a color saturation of 72% (NTSC). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 30K hours, including an LED driver. G150XVN01.1 adopts LVDS (1 ch, 6/8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you want to develop a new product using G150XVN01.1 LCD module, screen library ® We suggest that you inquire with AU or its agents about the latest production status and technical information regarding G150XVN01.1. Screen Library ® The panel parameters displayed on the screen were entered by the electronic engineer of the screen library according to the specification sheet, and efforts have been made to minimize errors, but we cannot guarantee the complete correctness of the parameters. Please refer to the specification sheet! According to the intelligence obtained by the screen library, this product was mass-produced in Q1 2015 and discontinued in Q1 2020. The current production status is discontinued. At present, G150XVN01.1 has 31 pieces of spot information and 36 supplier information on the screen library, which is the main model product traded in the screen library market. The screen library first established parameters for this model on May 12, 2014, and finally updated the parameters on March 24, 2020. Its working temperature is -10~70 ° C, storage temperature is -30~70 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its white LED backlight, including LED driver, terminal mounting, 180 degree flip display, 6/8-bit grayscale optional, and surface matte features, this model is recommended for use in industrial and other products
G150XVN01.1 Basic Parameters Manufacturer (Producer) AU/AUO Product Model (MODEL) G150XVN01.1 Screen Size 15.0 "Resolution 1024 × 768 Resolution Abbreviation (Resolution Name) XGA Display Scale 4:3 Pixel Arrangement RGB Vertical Strip Pitch 0.099 × 0.297 mm Product Composition LCD Screen, Panel Type (Technology) a-Si TFT-LCD Main Applications [Industrial], Significant Features [Grayscale Optional], [White LED], [Self Equipped LED Driver], [Foggy], [Wide Viewing Angle]], G150XVN01.1 Optoelectronic parameter display mode TN, normally white display, transmissive brightness 300 nits contrast ratio 1500:1 color 262K/16.2M color saturation 72% NTSC (CIE1931) response time 20/15 (Typ.) (Tr/Td) (ms) viewing angle 85/85/85 (Typ.) (CR ≥ 10) white field chromaticity Wx: 0.300; Wy: 0.325 White Field Dynamic 1.33 (Max.) (5 points) Scanning Frequency 60Hz Reverse Scan Flip (180 °) Signal Type The kind of Singnal LVDS Interface Type LVDS Terminal Signal Interface Definition LVDS (1 ch, 6/8-bit) Drive screen voltage 3.3V (Typ.) Panel Input Current 0.7/0.85A (Typ./Max)）Kind of Singnal Interface Terminal Signal Interface Brand of Singnal Interface E&T Signal Interface Model of Singnal Interface MDF76TW-30S-1H Signal Interface Pitch of Singnal Interface 1.0 mm Signal Interface Pin of Singnal Interface 30 pins G150XVN01.1 Structural Parameters Operation Temperature -10~70 ° C Storage Temperature -30~70 ° C Surface Technology Matte Surface Treatment, Hard coating (3H) display area (Active Area) 304.128 (W) × 228.096 (H) mm visible area (Display Area) 307.2 (W) × 231.1 (H) mm outline dimensions 326.5 (W) × 253.5 (H) mm touch screen (Touch Panel) no lamp position (Lamp Position) side in light source (bottom) backlight type (Backlight) WLED backlight life (Life Time of Lamp) 30K (Typ.) hours built-in lamp driver (Driver of Backlight) with LED driver module backlight interface type (Kind of Backlight Interface) terminal backlight interface brand (Brand of Backlight Interface) E&T backlight interface model Model of Backlight Interface 3808K-F05N-02 Quantity of Backlight Interface 1 pcs Pitch of Backlight Interface 1.0mm Backlight Interface Definition 30 pins G150XVN01.1 Packaging and production status Quantity Per Box: 10 pcs Size of the Box: 410 × 278 × 360 mm (length × width × height).
