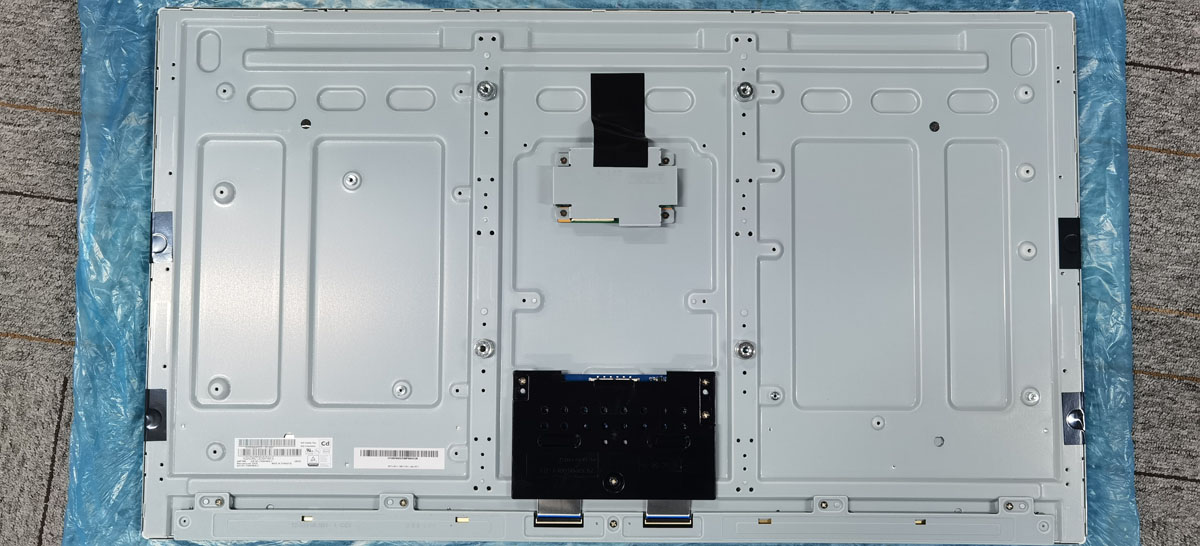

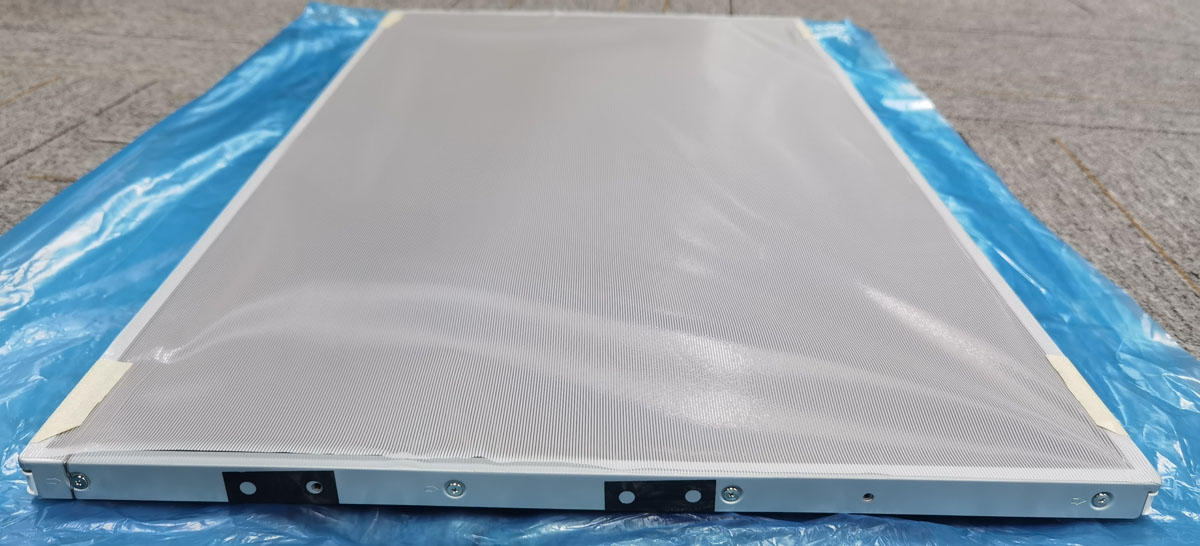

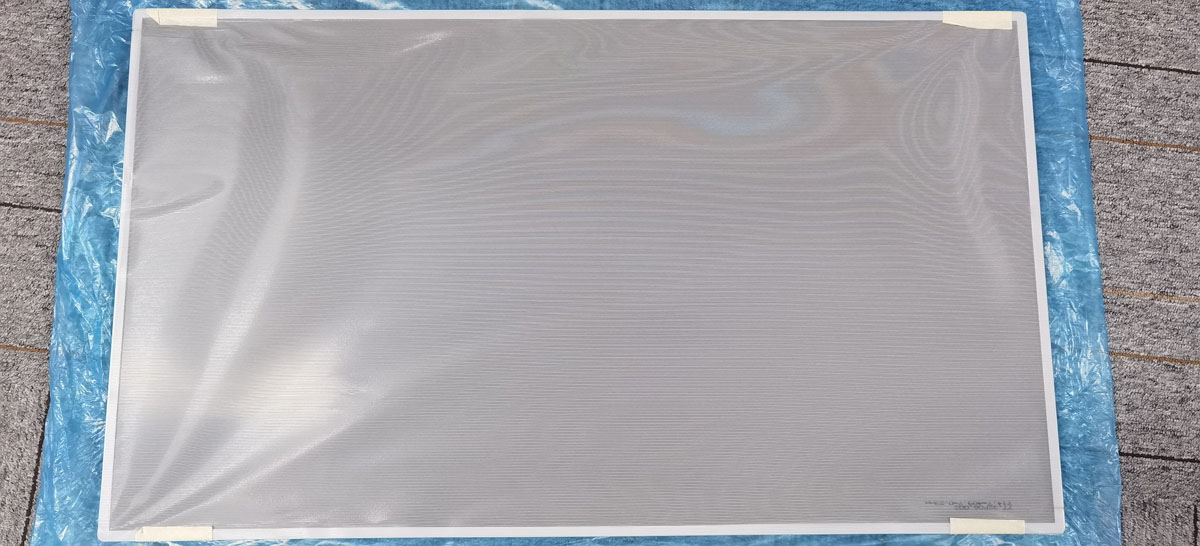

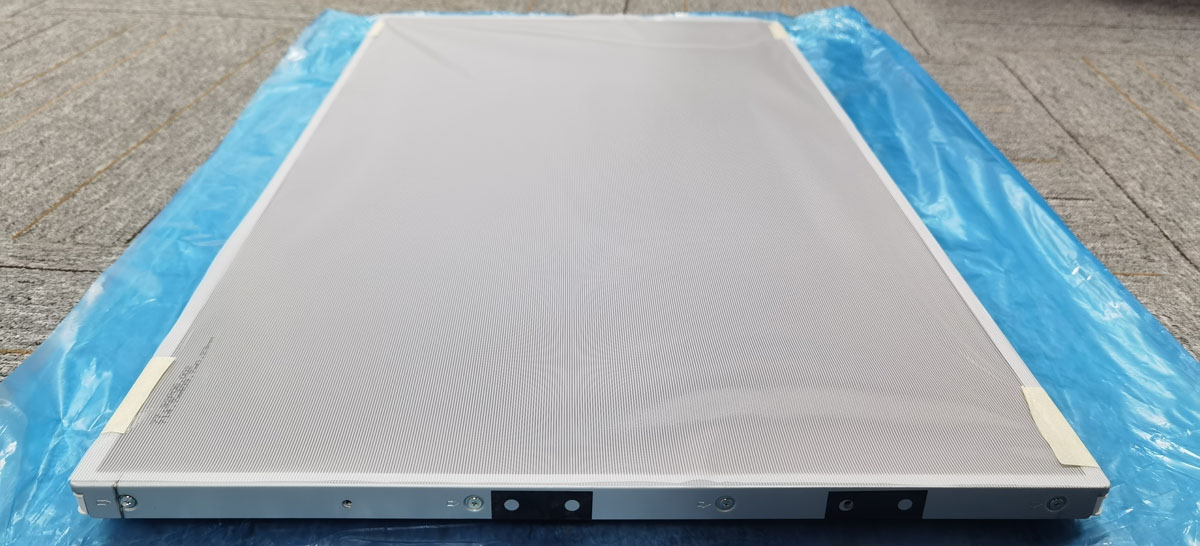

友达32寸液晶屏P320HVN02.3工业屏规格书凯显科技工业屏一体机触显广告机

Brand：台湾友达
Size：32寸
Model：P320HVN02.3
Resolution：1920×1080
Vision：89/89/89/89
Contrast：4000:1
brightness：500 cd/m² (Typ.)
interface：LVDS
Operating temperature：工作: 0 ~ 50 °C ; 存储: -20 ~ 60 °C
life：50000
Types of：WLED

Structural Details of AUO Liquid Crystal Module P320HVN02.3
Pixel Characteristics:

Number of Pixels: 1920(RGB)×1080, FHD
Dot Pitch: 0.12125×0.36375 mm (H×V)
Pixel Layout: RGB vertical stripes
Pixel Spacing: 0.36375×0.36375 mm (H×V) [69PPI]

Structural Dimensions:

Display Area: 698.4×392.85 mm (H×V)
Visible Area: 703.4×397.9 mm (H×V)
Appearance Size: 719.2×413.7 mm (H×V)
Appearance Thickness: 20.2/26.4 (Typ./Max.) mm

Appearance Features:

Appearance Shape: Planar rectangle
Landscape/Portrait: Landscape/Portrait mode
Aspect Ratio: 16:9 (H:V)
Appearance Shape: -

Other Characteristics:

Weight: 4.30Kgs (Typ.)
Surface Treatment: Matte surface (Haze 2%), Hard coating (3H)

Optical Details of AUO Liquid Crystal Module P320HVN02.3
Basic Information:

Panel Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 4000:1 (Typ.) (Transmissive)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Optical Mode: AMVA3, Normally black display, transmissive
Viewing Angle Direction: Full viewing angle
Response Time: 8 (Typ.)(G to G) (ms)

Color Performance:

White Chromaticity: Wx:0.313; Wy:0.329
Display Colors: 16.7M (8-bit)
Color Temperature: 6485K
Luminance Variation: 1.33 (Max.)(9 points)

1931 Color Gamut:

NTSC Ratio: 76%
sRGB Coverage: 98%
Adobe RGB Coverage: 76%
DCI-P3 Coverage: 79%
Rec.2020 Coverage: 57%
Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Electronic Details of AUO Liquid Crystal Module P320HVN02.3
Operating Frequency: 60Hz
Reverse Scanning: No

Backlight Details of AUO Liquid Crystal Module P320HVN02.3
Backlight Characteristics:

Lamp Type: WLED
Replaceable: -
Lamp Life: 50K (Typ.) hours
Quantity: -
Lamp Shape: -
Position: Side-in type light source

Interface Features:

Type: Terminal
Position: -
Lamp Driver: Including LED driver

Interface Details:

Brand: HAN CHERN
Model: CI0114M1HRL-NH
Pin Pitch: 2.0 mm
Number of Pins: 14 pins
Quantity: 1 pcs
Interface Definition: -

Drive Electrical:

Voltage Input: 24.0±1.2V
Current Input: 1.35/1.62AmA (Typ./Max.)
Power Consumption: 32.4/38.8W (Typ./Max.)

Signal Details of AUO Liquid Crystal Module P320HVN02.3
Signal System: LVDS (2 ch, 8-bit)
Signal Logic Voltage: -

Signal Electrical:

Voltage Input: 12.0V (Typ.)
Current Input: 0.36/0.43A (Typ./Max.)
Power Consumption: 4.32/5.16W (Typ./Max.)

Interface Features:

Type: Terminal
Position: -

Terminal Details:

Brand: Aviation Electronics
Model: FI-RE51SZ-HF
Pin Pitch: 0.5 mm
Number of Pins: 51 pins
Quantity: 1 pcs
Interface Definition: -

Packaging Details of AUO Liquid Crystal Module P320HVN02.3
Packaging Type: Pieces/Package

Number of Boxes:
Dimensions of Package (L×W×H) (mm):
Gross Weight (Kgs):
Volume (m³):
Remarks:
Carton: 7 pieces per box, 1 box, 820×376×535 mm, 39.47 Kgs, 0.1650 m³
Pallet: 42 pieces per stack, 6 stacks, 1150×840×1202 mm, 252.42 Kgs, 1.1611 m³

17-18.5-19-21.5-22-27-32－42-43-55寸液晶屏供应

P270HVN02.0 替代M270HVN02.0

G150XVN01.0原装，
LQ150X1LG92原装
M170ETN01.1原装+组装
P170ETN01.0原装
M190ETN01.0原装+组装
G190ETN01.0原装+组装
G190ETN01.1原装
G156HTN02.1原装
M185XTN01.2组装
M190PW01 V8 组装
P215HVN01.0原装
T215HVN01.1玻璃+组装
HR215WU1-120原装
P270HⅤN02.0原装+组装
P320HVN02.0原装
LC320EUJ-FFE2组装
T320HVN05.6组装
HV320FHB-F40玻璃+模组
T420HVN08.0原装
LC430EGG-FKM1原装
欢迎来电询价，手机微信同号:15919499179
深圳市凯显科技有限公司
冯刚：15919499179
QQ：80067093
地址：深圳宝安区石岩应人石永新街三和工业园C栋6楼

描述

友达液晶模组P320HVN02.3 结构详情

像素特征 :

像素数量 1920(RGB)×1080, FHD

点间距 0.12125×0.36375 mm (H×V)

像素布局 RGB垂直条状

像素间距 0.36375×0.36375 mm (H×V) [69PPI]

结构尺寸 :显示区域 698.4×392.85 mm (H×V)

可视区域 703.4×397.9 mm (H×V)

外观尺寸 719.2×413.7 mm (H×V) 外观厚度 20.2/26.4 (Typ./Max.) mm
外观特征 :外观形状平面矩形风景肖像风景 / 肖像模式
宽高比 16:9 (H:V) 外观形状 -

其它特征 :重量 4.30Kgs (Typ.)

表面处理雾面 (Haze 2%)，Hard coating (3H)

友达液晶模组P320HVN02.3 光学详情

基本信息 :面板亮度 500 cd/m² (Typ.)

对比度 4000:1 (Typ.) (透射)

可视角度 89/89/89/89 (Typ.)(CR≥10)

光学模式 AMVA3，常黑显示，透射式

视角方向全视角反应时间 8 (Typ.)(G to G) (ms)

色彩性能 :白色色度 Wx:0.313; Wy:0.329

显示颜色 16.7M (8-bit)

色温 6485K 亮度变动 1.33 (Max.)(9 points)
1931色域 :NTSC比值 76% sRGB覆盖率 98%
Adobe RGB覆盖率 76% DCI-P3覆盖率 79%

Rec.2020覆盖率 57%

色域说明 sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

友达液晶模组P320HVN02.3 电子详情
工作频率 :60Hz
翻转扫描 :No

友达液晶模组P320HVN02.3 背光详情

背光特征 :灯管类型 WLED 是否可换 - 灯管寿命 50K (Typ.) 小时

数量 - 灯管形状 - 位置侧入式光源
接口特征 :类型端子位置 - 灯管驱动含LED驱动器
接口详情 :品牌型号脚间距脚数数量接口定义
瀚荃 CI0114M1HRL-NH 2.0 mm 14 pins 1 pcs
驱动电气 :电压输入 24.0±1.2V 电流输入 1.35/1.62AmA (Typ./Max.)
功耗 32.4/38.8W (Typ./Max.)
友达液晶模组P320HVN02.3 信号详情
信号系统 :LVDS (2 ch, 8-bit) 信号逻辑电压 -
信号电气 :电压输入 12.0V (Typ.) 电流输入 0.36/0.43A (Typ./Max.)
功耗 4.32/5.16W (Typ./Max.)
接口特征 :类型端子位置 -
端子详情 :品牌型号脚间距脚数数量接口定义
航空电子 FI-RE51SZ-HF 0.5 mm 51 pins 1 pcs
友达液晶模组P320HVN02.3 包装详情
包装类型片/包装箱数包装长宽高 (mm) 毛重 (Kgs) 体积 (m³) 备注
纸箱 7 1 820×376×535 39.47 0.1650
卡板 42 6 1150×840×1202 252.42 1.1611
