- 京东方21.5寸液晶屏HR215WU1-120规格书 凯显科技工业屏一体机触显广告机
-
- Brand：京东方
- Size：21.5寸宽屏
- Model：HR215WU1-120
- Resolution：1920×1080
- Vision：89/89/89/89
- Contrast：1000:1
- brightness：250 cd/m²
- interface：LVDS
- Operating temperature：工作: 0 ~ 50 °C ; 存储: -20 ~ 60 °C
- life：50000
- Types of：WLED

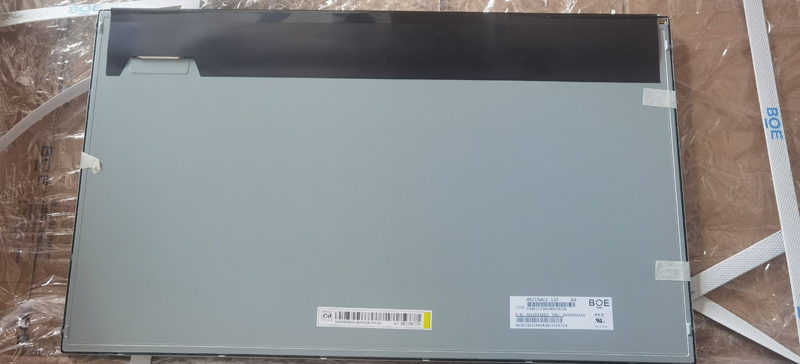

BOE Liquid Crystal Module HR215WU1-120
Type: a-Si TFT-LCD, Liquid Crystal Module Application Product
Diagonal Size: 21.5" Model Alias: -
Application Environment: Storage Temperature: -20 ~ 60 °C Operating Temperature: 0 ~ 50 °C RoHS: RoHS Compliance Vibration Resistance: 1.5G (14.7 m/s²)
Remarks Information: ES 8.0, TCO8.0 compliant
Pixel Characteristics: Resolution: 1920(RGB)×1080, FHD
Dot Pitch (mm): 0.08275×0.24825 (H×V)
Pixel Arrangement: RGB vertical stripes
Pixel Spacing (mm): 0.24825×0.24825 (H×V) [102PPI]
Structural Dimensions: Display Area (mm): 476.64(H) × 268.11(V) Opening Area (mm): 479.8(H) × 271.3(V) Appearance Size (mm): 495.6(H) × 292.2(V) Appearance Thickness (mm): 8.2/11.3 (Typ./Max.)
Appearance Features: Physical Shape: Planar rectangle, with a frame Appearance Style: -
Aspect Ratio: 16:9 (H:V) Landscape/Portrait: Landscape mode
Mounting Method: Side mounting holes (4-M3) on left, right bezel
Other Parameters: Weight: 1.79Kgs (Typ.)
Surface Treatment: Matte surface, Hard coating (3H)
Optical Details of BOE Liquid Crystal Module HR215WU1-120
Basic Information: Display Brightness: 250 cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (Transmissive)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Display Mode: ADS, Normally black display, transmissive Recommended Viewing Angle: Full viewing angle Response Time (ms): 14 (Typ.)(Tr+Td)
Color Performance: White Coordinates: Wx: 0.313; Wy: 0.329 Supported Colors: 16.7M (6-bit + Hi-FRC) Color Temperature: 6485K Luminance Uniformity: 1.33 (Max.)(9 points)
1931 Color Gamut: NTSC Ratio: 74% sRGB Coverage: 97% Adobe RGB Coverage: 75% DCI-P3 Coverage: 77% Rec.2020 Coverage: 55% Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Frame Frequency: 60Hz
Reverse Scanning: No
Total Power Consumption: 10.21/14.26W (Typ./Max.)
Signal Electrical: Voltage Supply: 5.0V (Typ.) Current Supply: 0.5/1.2A (Typ./Max.) Power Consumption: 2.5/6.0W (Typ./Max.)
Signal Type: LVDS (2 ch, 8-bit) Logic Voltage: -
Interface Features: Position: Type: Terminal
Interface Details: Brand: Model: Pin Pitch: Number of Pins: Quantity: Pin Definition: Uniwill IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A
Light Source Characteristics: Light Source Type: WLED Quantity: 17S4P Light Source Life: 30K (Min.) hours Replaceable: - Shape: 4 strings Light Source Position: Side-in type light source (bottom)
Lamp Electrical: Voltage Supply: 41.6/44.8/48V (Min./Typ./Max.) Current Supply: 43mA Power Consumption: 7.71/8.26W (Typ./Max.)
Interface Features: Position: Type: Terminal
Interface Details: Brand: Model: Pin Pitch: Number of Pins: Quantity: Pin Definition: Endeli 3708K-Q06N-08X 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Light Source Drive: None
Packaging Type: Pieces/Package Number of Boxes Dimensions of Package (L×W×H) (mm) Gross Weight (Kgs) Volume (m³) Remarks

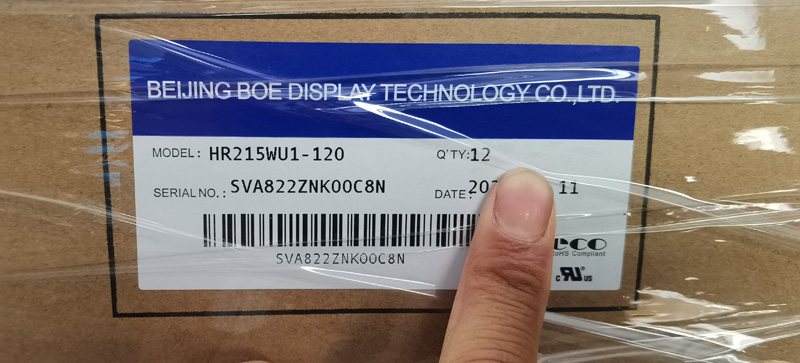

Carton: 12 pieces per package, 1 box, 563×338×390 mm, 23.80 Kgs, 0.0742 m³
Pallet: 144 pieces per package, 12 boxes, 1140×1080×910 mm, 306.00 Kgs, 1.1204 m³
Pallet: 216 pieces per package, 18 boxes, 1140×1080×1300 mm, 466.00 Kgs, 1.6006 m³
15-17-18.5-19-21.5-22-27-32－42-43-55寸液晶屏供应.
P270HVN02.0 替代M270HVN02.0
G150XVN01.0原装，
LQ150X1LG92原装
M170ETN01.1原装+组装

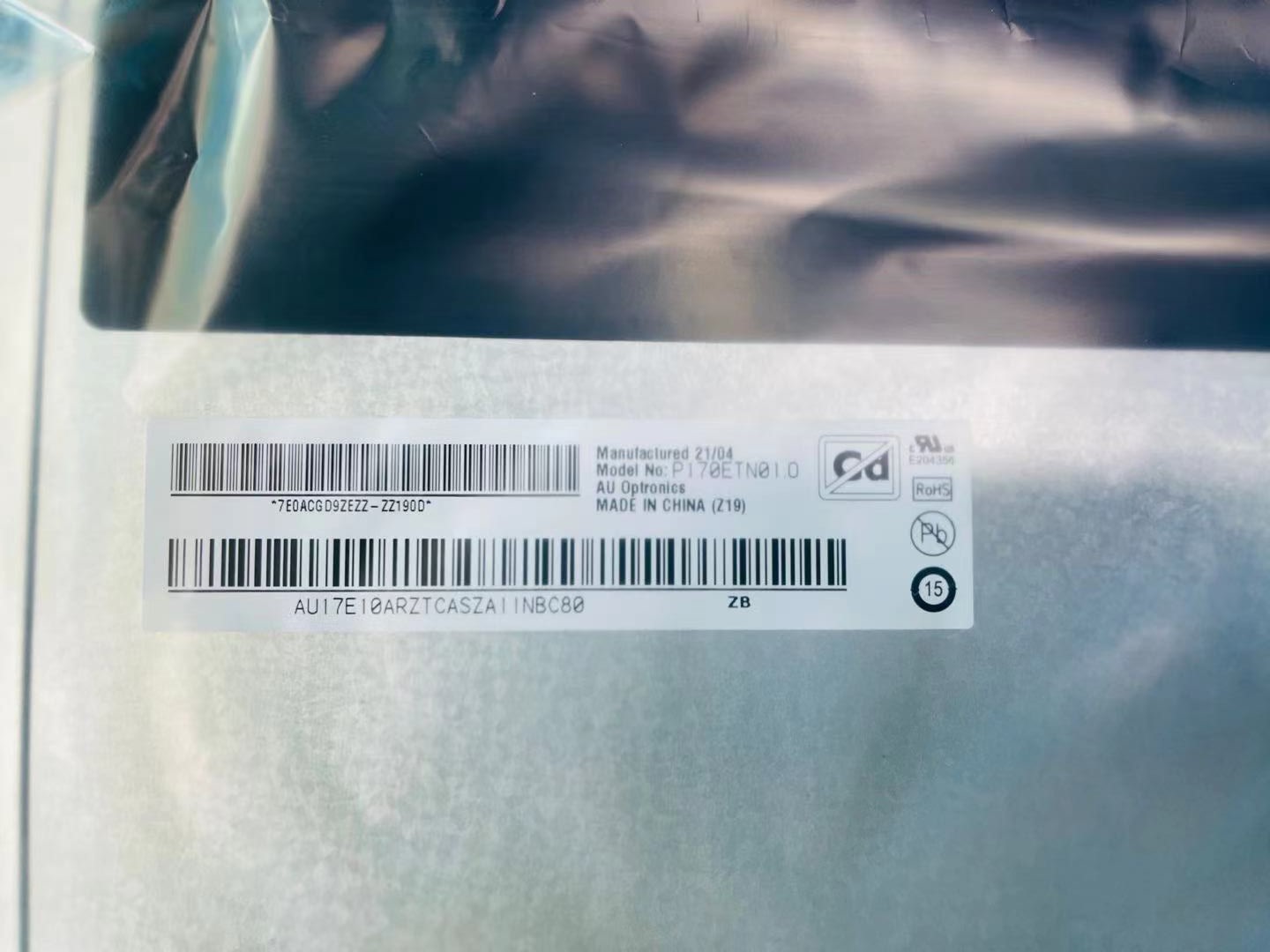

P170ETN01.0原装
M190ETN01.0原装+组装
G190ETN01.0原装+组装
G190ETN01.1原装
G156HTN02.1原装
M185XTN01.2组装
M190PW01 V8 组装
P215HVN01.0原装
T215HVN01.1玻璃+组装
HR215WU1-120原装
P270HⅤN02.0原装+组装
P320HVN02.0原装
LC320EUJ-FFE2组装
T320HVN05.6组装
HV320FHB-F40玻璃+模组
T420HVN08.0原装
LC430EGG-FKM1原装
欢迎来电询价，手机微信同号:15919499179
深圳市凯显科技有限公司
冯刚：15919499179
QQ：80067093
地址：深圳宝安区石岩应人石永新街三和工业园C栋6楼
类型a-Si TFT-LCD , 液晶模组应用产品
对角尺寸 21.5"型号别名-
应用环境 :存储温度-20 ~ 60 °C工作温度0 ~ 50 °CRoHS抗振性能1.5G (14.7 m/s²)
备注信息 :ES 8.0 ,TCO8.0 compliant
像素特征 :解析度1920(RGB)×1080, FHD
点间距(mm)0.08275×0.24825 (H×V)
像素排列RGB垂直条状
像素间距(mm)0.24825×0.24825 (H×V) [102PPI]
结构尺寸 :显示区域(mm)476.64(H) × 268.11(V)开口区域(mm)479.8(H) × 271.3(V)外观尺寸(mm)495.6(H) × 292.2(V)外观厚度(mm)8.2/11.3 (Typ./Max.)外观特征 :物理形状平面矩形, 有边框外观样式-
宽高比16:9 (H:V)风景肖像风景模式
安装方式 :Side mounting holes (4-M3) on left, right bezel其它参数 :重量1.79Kgs (Typ.)
表面处理雾面，Hard coating (3H)
京东方液晶模组HR215WU1-120 光学详情基础信息 :显示亮度250 cd/m² (Typ.)对比度1000:1 (Typ.) (透射)
可视角度89/89/89/89 (Typ.)(CR≥10)显示模式ADS，常黑显示，透射式推荐视角全视角响应时间(ms)14 (Typ.)(Tr+Td)
色彩性能 :白色坐标Wx:0.313; Wy:0.329支持颜色16.7M (6-bit + Hi-FRC)色温6485K亮度均匀性1.33 (Max.)(9 points)1931色域 :NTSC比值74%sRGB覆盖率97%Adobe RGB覆盖率75%DCI-P3覆盖率77%Rec.2020覆盖率55%色域说明sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
帧频率 :60Hz
翻转扫描 :No
功率总耗:10.21/14.26W (Typ./Max.)
信号电气 :电压供应5.0V (Typ.)电流供应0.5/1.2A (Typ./Max.)功率消耗2.5/6.0W (Typ./Max.)
信号类型 :LVDS (2 ch, 8-bit)逻辑电压-
接口特征 :位置类型端子
接口详情 :品牌型号脚距脚数数量脚定义 宇宙IS100-L30O-C231.0 mm30 pins1 pcsLVDS-30P2C8B-160A
光源特征 :光源类型WLED数量17S4P光源寿命30K (Min.) 小时是否可换-形状4串光源位置侧入式光源(底部)
灯管电气 :电压供应41.6/44.8/48V (Min./Typ./Max.)电流供应43mA功率消耗7.71/8.26W (Typ./Max.)
接口特征 :位置类型端子
接口详情 :品牌型号脚距脚数数量脚定义 恩得利3708K-Q06N-08X1.0 mm6 pins1 pcsBLE-6PINS-CCAACC
光源驱动 :无
包装类型 片/包装 箱数 包装长宽高 (mm) 毛重 (Kgs) 体积 (m³) 备注
纸箱 12 1 563×338×390 23.80 0.0742
卡板 144 12 1140×1080×910 306.00 1.1204
卡板 216 18 1140×1080×1300 466.00 1.6006
