- 友达21.5寸工业液晶屏 G215HAN01.6显示器 一体机 广告机 触显 查询机 凯显科技
-
- Brand：友达AUO
- Size：21.5寸
- Model：G215HAN01.6
- Resolution：1920×1080
- Vision：89/89/89/89
- Contrast：1800:1
- brightness：300cd/m²
- interface：LVDS
- Operating temperature：0 ~ 50 °C 存储温度: -20 ~ 60 °C
- life：50K小时,不含驱动
- Types of：WLED

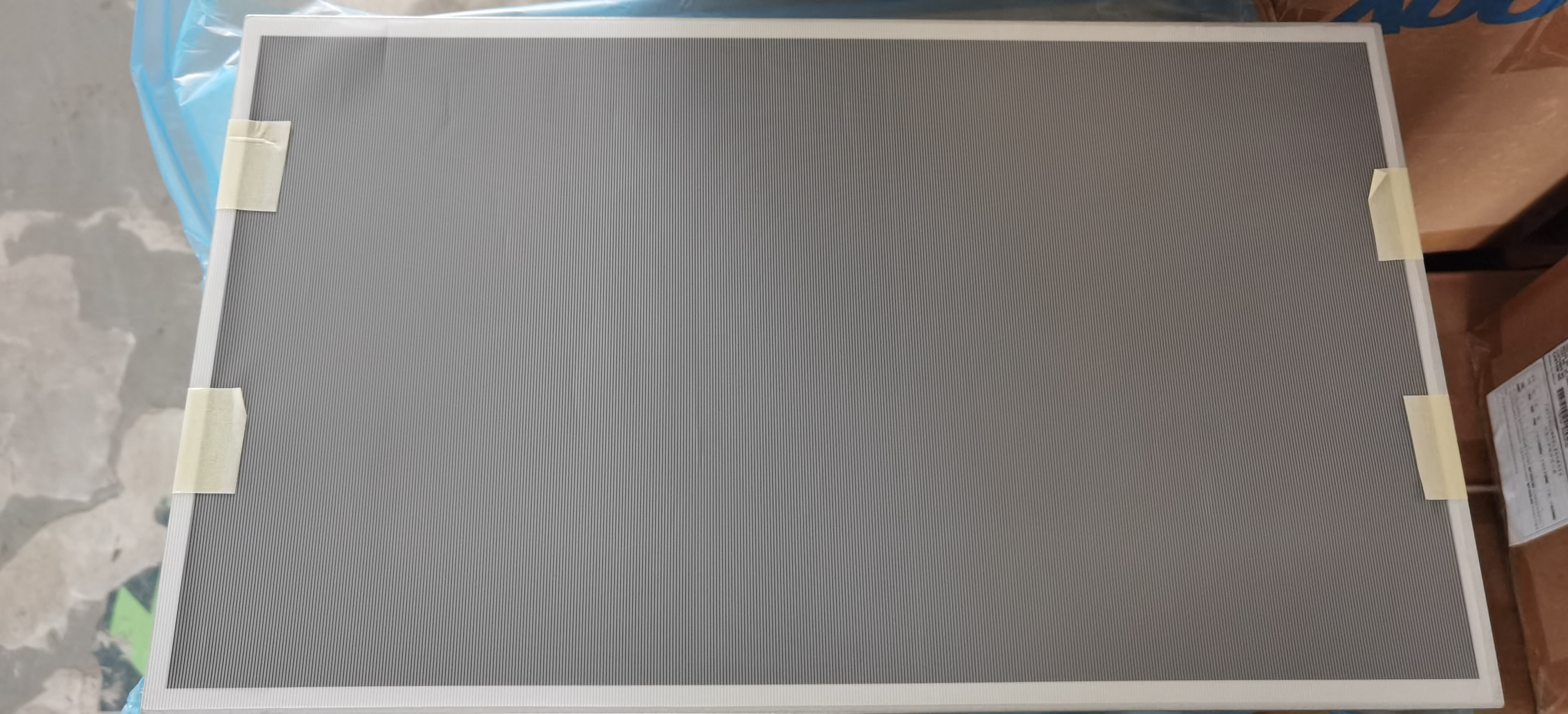

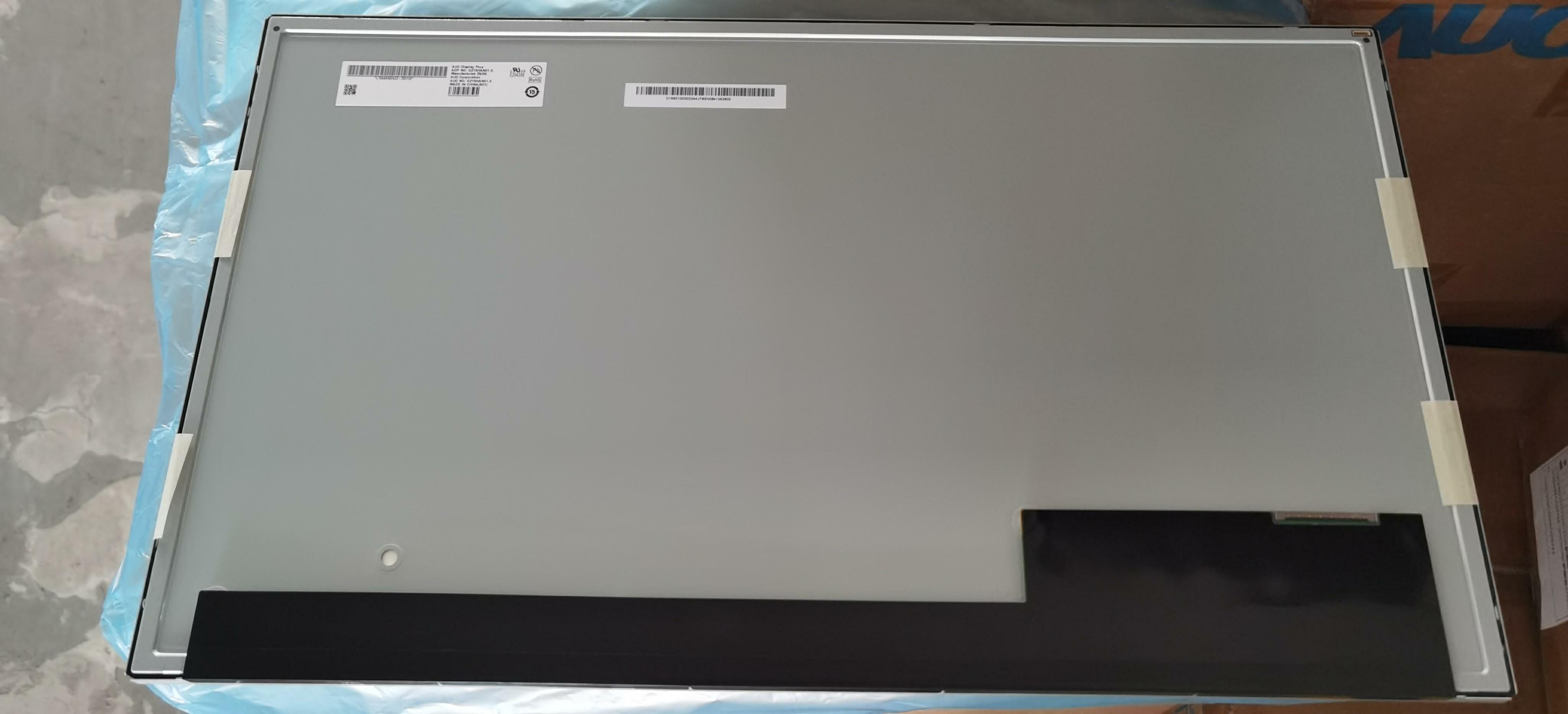

- G215HAN01.6 is a 21.5-inch LCD module launched by AUO. Its detailed parameters are as follows:
1. Basic Information: It adopts a-Si TFT-LCD technology, is equipped with WLED backlight, has no backlight driver or touch function, and features a matte surface with Hard coating (3H). The operating temperature range is 0~50°C, the storage temperature range is -20~60°C, and the vibration resistance is 1.5G (14.7 m/s²). It was mass-produced in Q2 2022 and is currently in mass production.
2. Display Parameters: The display resolution is 1920(RGB)×1080 (FHD) with an aspect ratio of 16:9. Pixels are arranged in RGB vertical stripes. The display area size is 476.064×267.786 (width×height) mm, the visible size is 479.8×271.3 (width×height) mm, and the overall dimension is 497.6 (width)×292.2 (height) mm. The brightness is 300 cd/m², and the contrast ratio is 1800:1. The viewing angles are 89/89/89/89 (Typ.)(CR≥10) (left/right/top/bottom), with the best viewing angle in the symmetric direction. The response time is 12/10 (Typ.)(Tr/Td) ms. An 8-bit grayscale signal can display 16.7 million colors, with a color gamut of 72% (NTSC) and a vertical refresh rate of 60Hz.
3. Backlight Parameters: It uses a top-edge side-in type light source with WLED illumination, has a service life of 50K hours, and does not include a backlight driver.
4. Interface Parameters: It adopts an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, uses terminal connection, and the driving voltage for the screen is 5.0V (Typ.).
G215HAN01.6是友达（AUO）推出的一款21.5英寸液晶模组产品。其详细参数如下：
1. 基本信息：采用a - Si TFT - LCD技术，装配WLED背光，无背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.5G (14.7 m/s²)，于2022年Q2量产，生产状态为量产中。
2. 显示参数：显示分辨率1920(RGB)×1080 (FHD)，宽高比16:9，像素采用RGB垂直条状排列，显示区域尺寸476.064×267.786 (宽×高) mm，可视尺寸479.8×271.3 (宽×高) mm，外观尺寸497.6(宽)×292.2(高) mm，亮度300 cd/m²，对比度1800:1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为对称方向，响应时间12/10 (Typ.)(Tr/Td) ms，8位灰阶信号可显示16.7M颜色，色域72% (NTSC)，垂直刷新率60Hz。
3. 背光参数：采用WLED发光的侧入式光源(顶部)，使用寿命50K小时，不含背光驱动。
4. 接口参数：采用LVDS (2 ch, 8 - bit)信号接口，总共30 pins，采用端子连接，驱屏电压5.0V (Typ.)。
1. 基本信息：采用a - Si TFT - LCD技术，装配WLED背光，无背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.5G (14.7 m/s²)，于2022年Q2量产，生产状态为量产中。
2. 显示参数：显示分辨率1920(RGB)×1080 (FHD)，宽高比16:9，像素采用RGB垂直条状排列，显示区域尺寸476.064×267.786 (宽×高) mm，可视尺寸479.8×271.3 (宽×高) mm，外观尺寸497.6(宽)×292.2(高) mm，亮度300 cd/m²，对比度1800:1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为对称方向，响应时间12/10 (Typ.)(Tr/Td) ms，8位灰阶信号可显示16.7M颜色，色域72% (NTSC)，垂直刷新率60Hz。
3. 背光参数：采用WLED发光的侧入式光源(顶部)，使用寿命50K小时，不含背光驱动。
4. 接口参数：采用LVDS (2 ch, 8 - bit)信号接口，总共30 pins，采用端子连接，驱屏电压5.0V (Typ.)。
