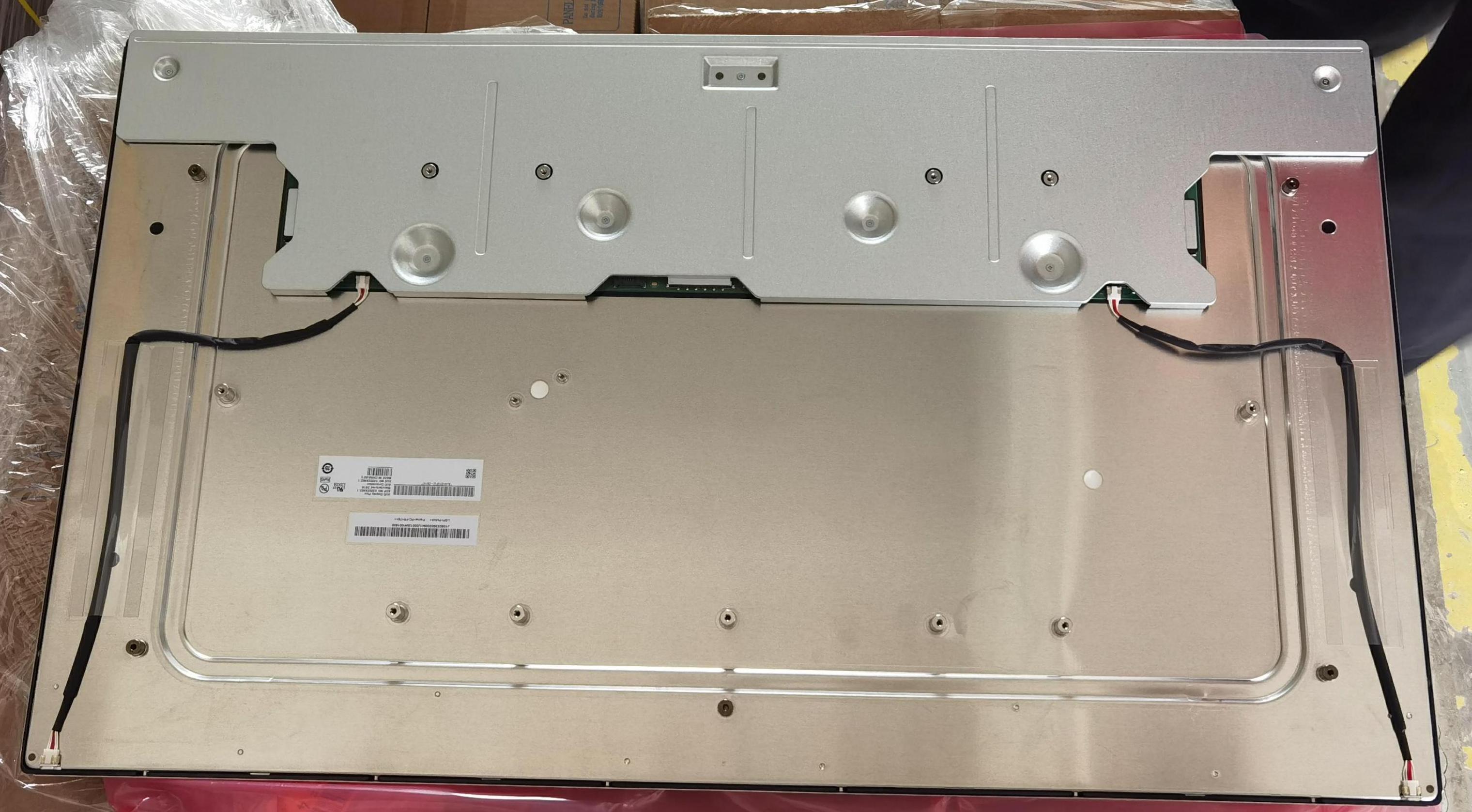

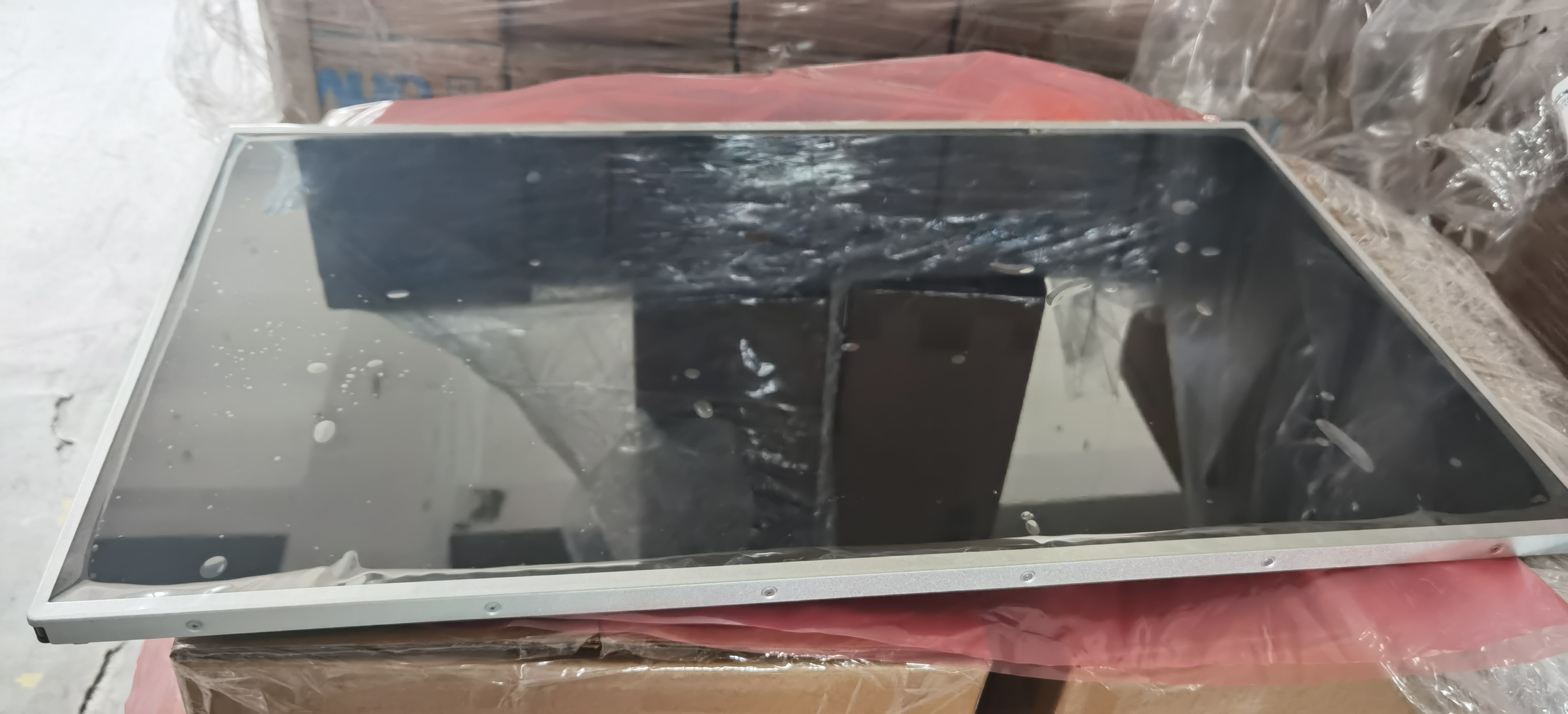

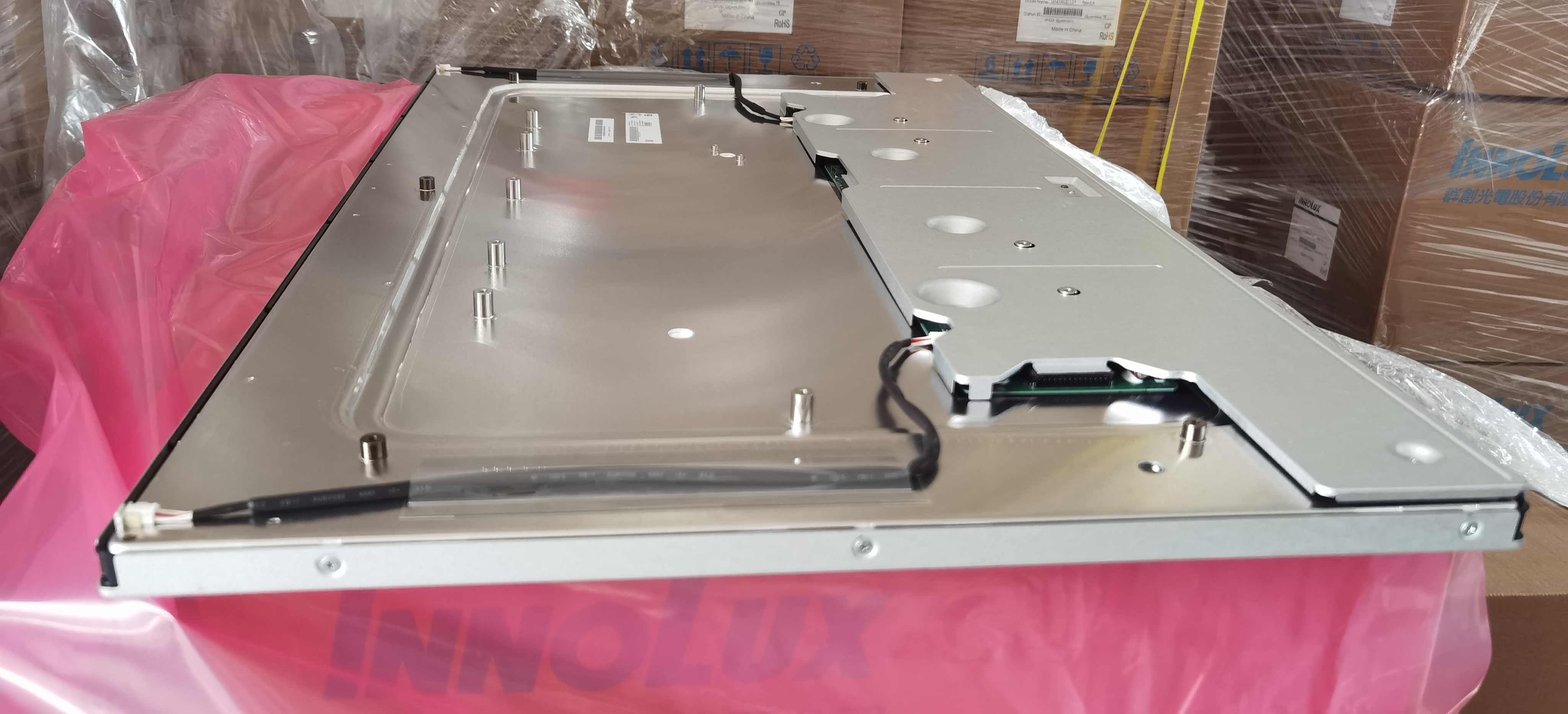

- AUO 友达32寸工业液晶屏G320ZAN02.1 显示器 一体机 医疗屏 医用设备 广告机 触显 查询机 凯显科技
-
- Brand：友达AUO
- Size：32寸
- Model：G320ZAN02.1
- Resolution：3840*2160
- Vision：89/89/89/89
- Contrast：1350:1
- brightness：850cd/m²
- interface：LVDS
- Operating temperature：0 ~ 50 °C 存储温度: -20 ~ 60 °C
- life：30K小时,含LED驱动
- Types of：WLED
- G320ZAN02.1 is a 32.0-inch a-Si TFT-LCD module launched by AUO. Its detailed parameters are as follows:
1. Basic Information: Equipped with WLED backlight, including LED driver for backlight, no touch function. The surface is matte with Hard coating (3H). The operating temperature range is 0~50°C, and the storage temperature range is -20~60°C. The vibration resistance is 1.0G (9.8 m/s²). The original English version Pre Ver0.1 was released on March 16, 2020.
2. Display Parameters: The display resolution is 3840(RGB)×2160 (UHD) with an aspect ratio of 16:9. Pixels are arranged in RGB vertical stripes. The display area size is 708.48×398.52 (width×height) mm, the visible size is 714.48×404.52 (width×height) mm, and the overall dimension is 727.3 (width)×424.5 (height) mm. The overall thickness is 20.48±0.5 mm. The brightness is 850 cd/m², and the contrast ratio is 1350:1. The viewing angles are 89/89/89/89 (Typ.)(CR≥10) (left/right/top/bottom), with the best viewing angle being full viewing angle. The response time is 18 (Typ.)(Tr/Td) ms. An 8-bit grayscale signal can display 1.07 billion colors, with a color gamut of 94% (NTSC) and a vertical refresh rate of 60Hz.
3. Backlight Parameters: It uses a side-in type light source with WLED illumination, has a service life of 30K hours, and includes an LED driver.
4. Interface Parameters: It adopts a V-by-One 8 lane signal interface with a total of 51 pins, uses terminal connection, and the driving voltage for the screen is 12.0V (Typ.).
G320ZAN02.1是友达（AUO）推出的一款32.0英寸a - Si TFT - LCD液晶模组产品。其详细参数如下：
1. 基本信息：装配WLED背光，含LED驱动器背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.0G (9.8 m/s²)，于2020年3月16日发布原厂英语版Pre Ver0.1。
2. 显示参数：显示分辨率3840(RGB)×2160 (UHD)，宽高比16:9，像素采用RGB垂直条状排列，显示区域尺寸708.48×398.52 (宽×高) mm，可视尺寸714.48×404.52 (宽×高) mm，外观尺寸727.3(宽)×424.5(高) mm，外观厚度20.48±0.5 mm，亮度850 cd/m²，对比度1350:1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为全视角，响应时间18 (Typ.)(Tr/Td) ms，8位灰阶信号可显示1.07B颜色，色域94% (NTSC)，垂直刷新率60Hz。
3. 背光参数：采用WLED发光的侧入式光源，使用寿命30K小时，含LED驱动器。
4. 接口参数：采用V - by - One 8 lane信号接口，总共51 pins，采用端子连接，驱屏电压12.0V (Typ.)。
1. 基本信息：装配WLED背光，含LED驱动器背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.0G (9.8 m/s²)，于2020年3月16日发布原厂英语版Pre Ver0.1。
2. 显示参数：显示分辨率3840(RGB)×2160 (UHD)，宽高比16:9，像素采用RGB垂直条状排列，显示区域尺寸708.48×398.52 (宽×高) mm，可视尺寸714.48×404.52 (宽×高) mm，外观尺寸727.3(宽)×424.5(高) mm，外观厚度20.48±0.5 mm，亮度850 cd/m²，对比度1350:1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为全视角，响应时间18 (Typ.)(Tr/Td) ms，8位灰阶信号可显示1.07B颜色，色域94% (NTSC)，垂直刷新率60Hz。
3. 背光参数：采用WLED发光的侧入式光源，使用寿命30K小时，含LED驱动器。
4. 接口参数：采用V - by - One 8 lane信号接口，总共51 pins，采用端子连接，驱屏电压12.0V (Typ.)。
