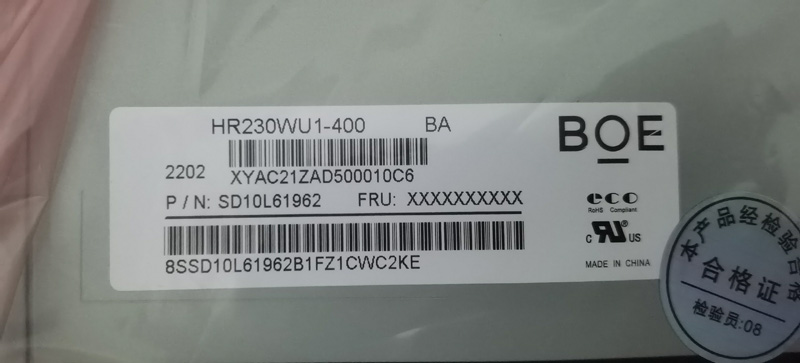

Application Details of BOE Liquid Crystal Module HR230WU1-400
Basic Information: Manufacturer: BOE Model: HR230WU1-400 Type: a-Si TFT-LCD, Liquid Crystal Module Application Product: Computer Monitor Diagonal Size: 23.0" Alias: -
Application Environment: Storage Temperature: -20 ~ 60 °C Operating Temperature: 0 ~ 50 °C RoHS: RoHS Compliance Vibration Resistance: 1.5G (14.7 m/s²)
Typical Features:
Pixel Characteristics: Resolution: 1920(RGB)×1080, FHD Dot Pitch (mm): 0.0884×0.2652 (H×V) Pixel Arrangement: RGB vertical stripes Pixel Spacing (mm): 0.2652×0.2652 (H×V) [95PPI]
Structural Dimensions: Display Area (mm): 509.184(H) × 286.416(V) Opening Area (mm): 513.0(H) × 291.0(V) Appearance Size (mm): 533.2(H) × 312(V) Appearance Thickness (mm): 8.5/11.0 (Typ./Max.)
Appearance Features: Physical Shape: Planar rectangle, with a frame Appearance Style: - Aspect Ratio: 16:9 (H:V) Landscape/Portrait: Landscape mode
Mounting Method: Side mounting holes (4-M3) on left, right bezel
Other Parameters: Weight: 2.39Kgs (Typ.) Surface Treatment: Matte surface (Haze 25%), Hard coating (3H)
Basic Information: Display Brightness: 250 cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (Transmissive) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Display Mode: FFS, Normally black display, transmissive Recommended Viewing Angle: Full viewing angle Response Time (ms): 14 (Typ.)(G to G)
Color Performance: White Coordinates: Wx: 0.313; Wy: 0.329 Supported Colors: 16.7M (6-bit + Hi-FRC) Color Temperature: 6485K Luminance Uniformity: 1.33 (Max.)(5 points)
1931 Color Gamut: NTSC Ratio: 73% sRGB Coverage: 99% Adobe RGB Coverage: 76% DCI-P3 Coverage: 76% Rec.2020 Coverage: 54% Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Frame Frequency: 60Hz
Reverse Scanning: No
Total Power Consumption: 18.3/19.6W (Typ./Max.)
Signal Electrical: Voltage Supply: 5.0V (Typ.) Current Supply: 1.0/1.2A (Typ./Max.) Power Consumption: 5.5/6.0W (Typ./Max.)
Signal Type: LVDS (2 ch, 8-bit) Logic Voltage: -
Interface Features: Position: Lower right of the screen body ┛ Type: Terminal
Interface Details: Brand: Model: Pin Pitch: Number of Pins: Quantity: Pin Definition: Uniwill IS100-L30R-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A
Light Source Characteristics: Light Source Type: WLED Quantity: 4 strings Position: Side-in type light source (bottom) Replaceable: - Shape: 4 strings Life: 30K (Min.) Hours
Lamp Electrical: Voltage Supply: 64±4.0V Current Supply: 50mA (Typ.) Power Consumption: 12.8±0.8W
Interface Features: Position: Lower left corner Type: Terminal
Interface Details: Brand: Model: Pin Pitch: Number of Pins: Quantity: Pin Definition: Endeli 3708K-Q06N-00R 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Light Source Drive:
Packaging Type: Pieces/Package Number of Boxes Dimensions of Package (L×W×H) (mm) Gross Weight (Kgs) Volume (m³) Remarks
Carton: 8 pieces per package, 1 box, 613×233×445 mm, N/A, 0.0636 m³
Pallet: 96 pieces per package, 12 boxes, N/A, N/A, N/A
