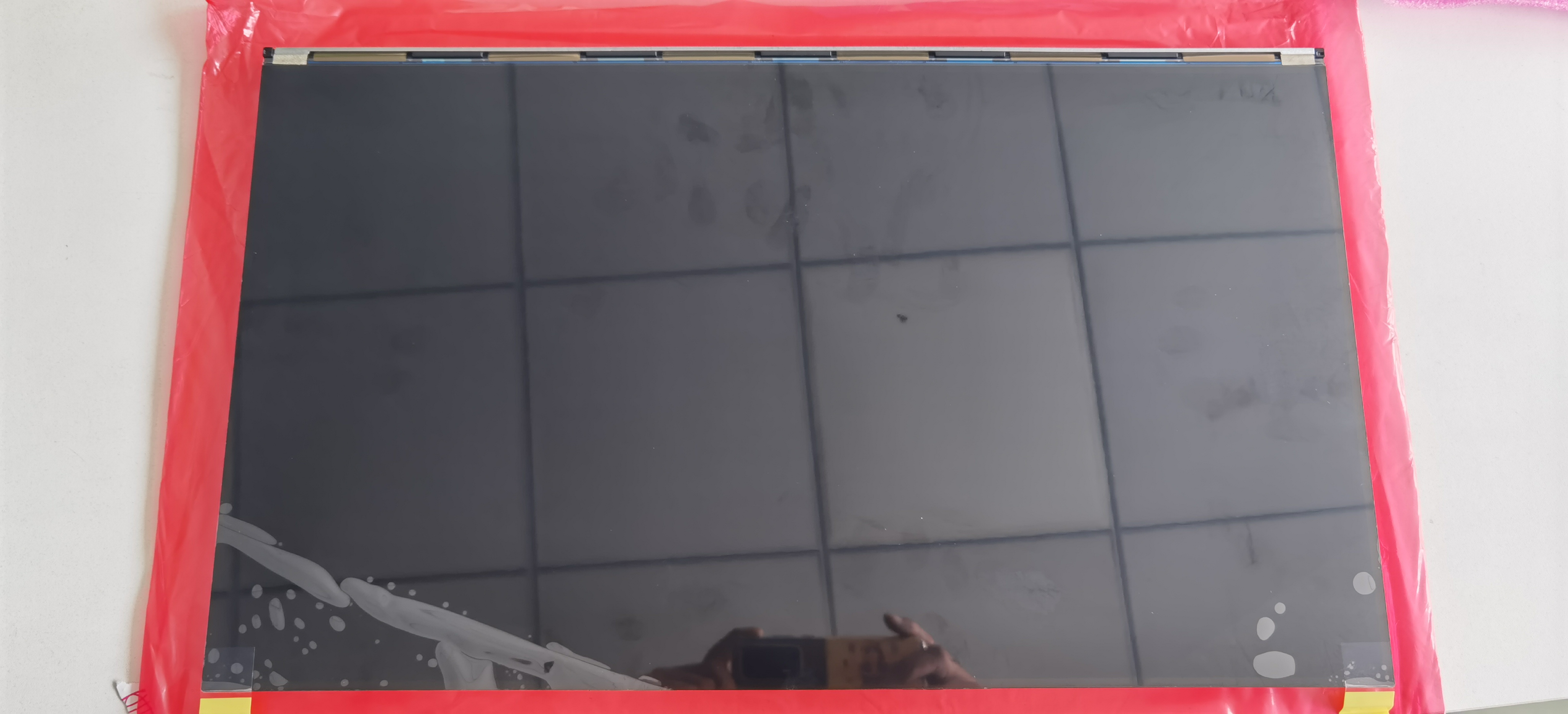

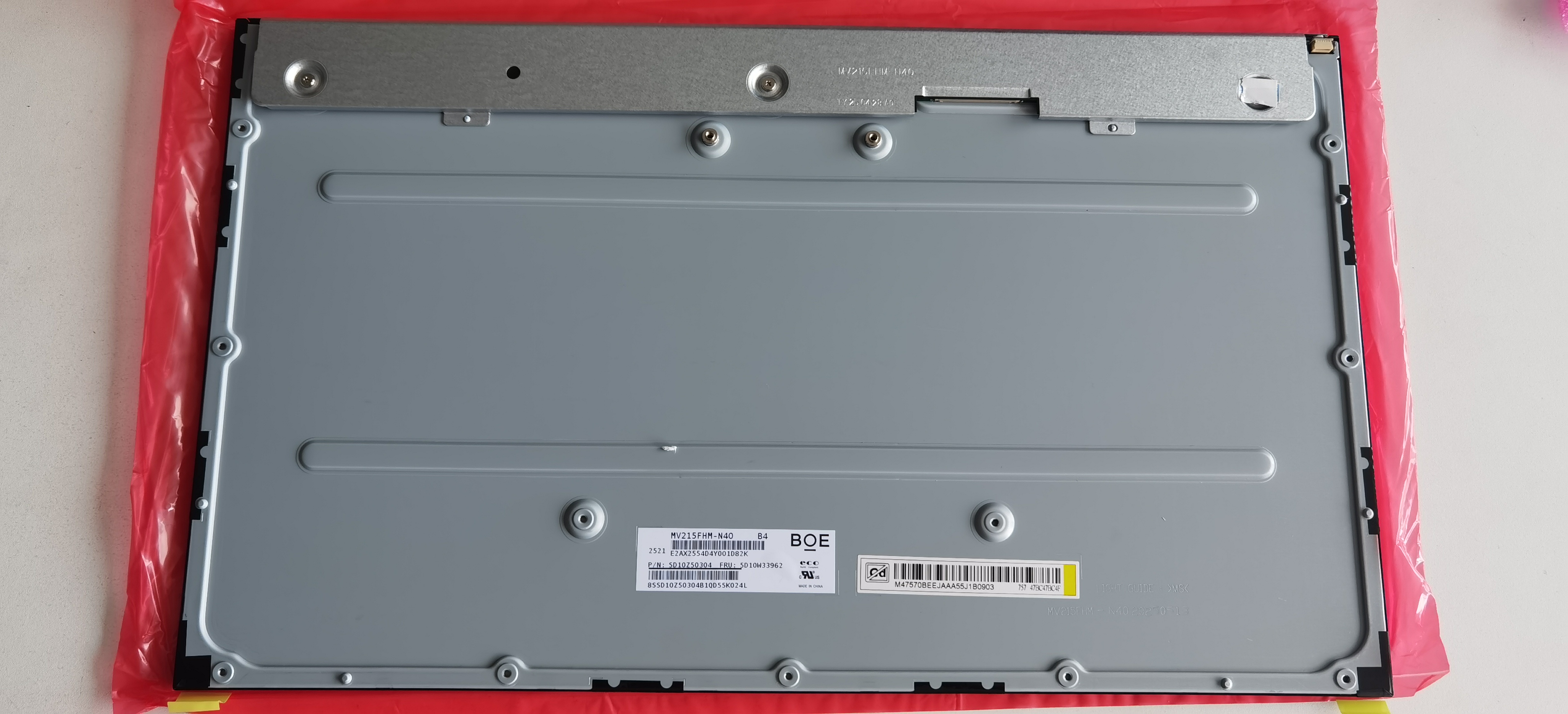

- 京东方21.5寸液晶屏MV215FHM-N40 显示器 一体机 广告机 触显 查询机
-
- Brand：京东方
- Size：21.5寸

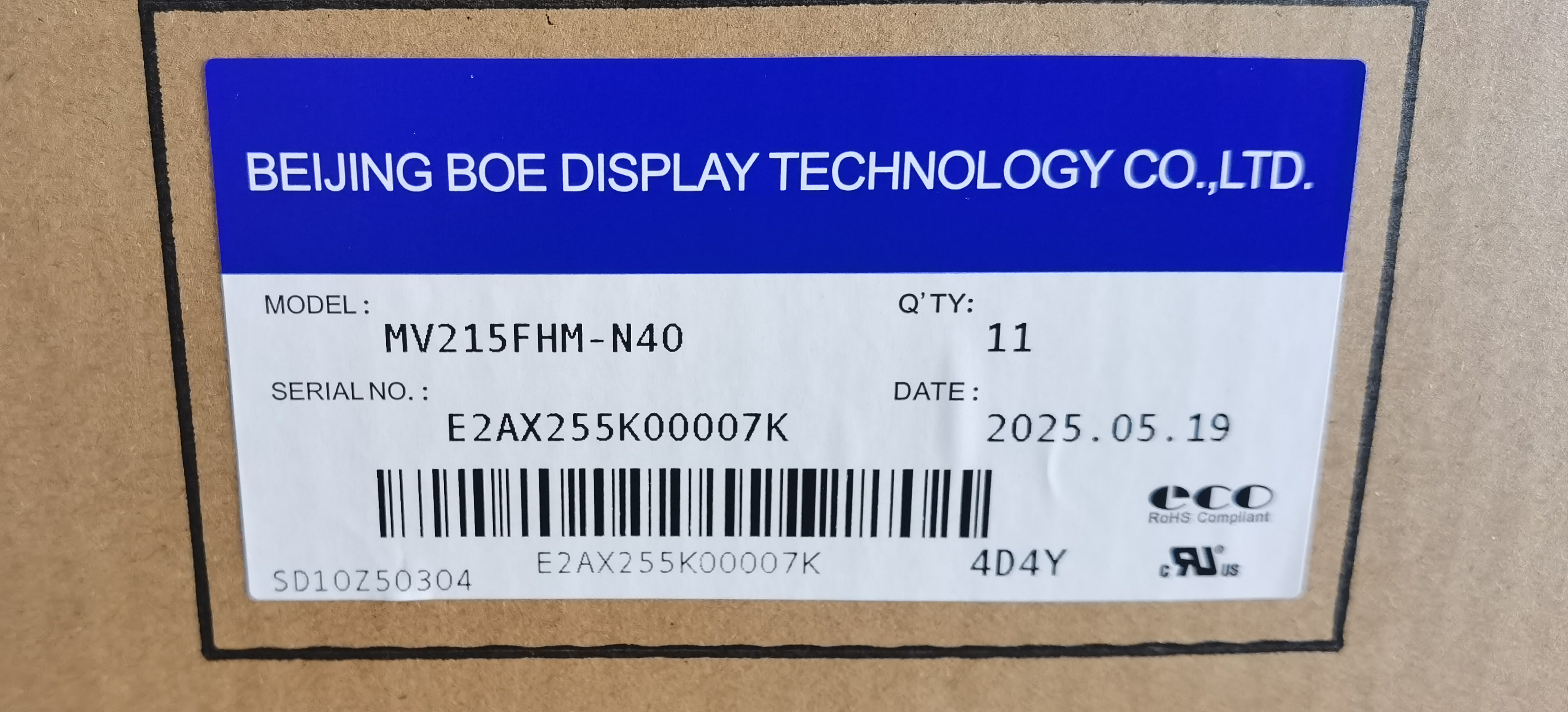

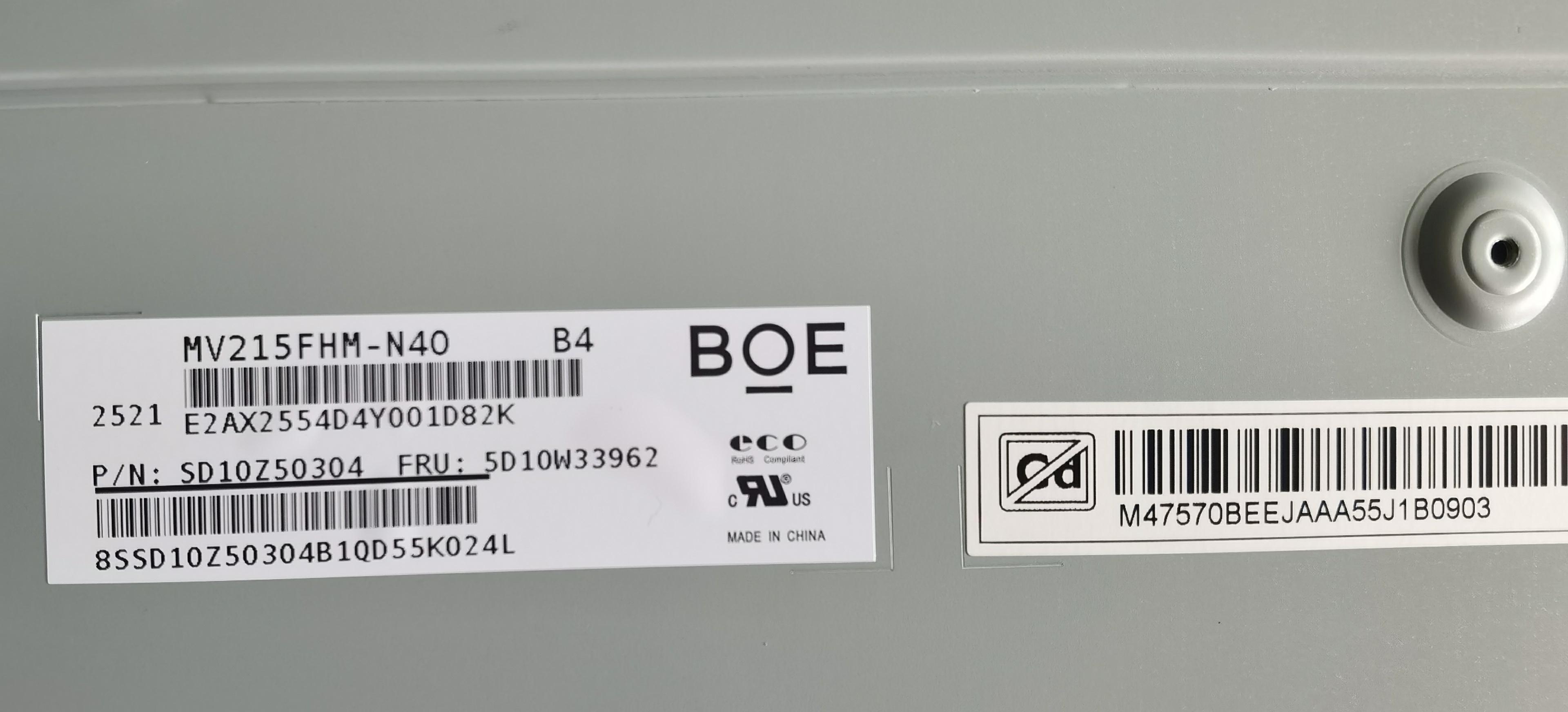

- Model：MV215FHM-N40
- Resolution：1920×1080
- Vision：89/89/89/89
- Contrast：1000:1
- brightness：250cd/m²
- interface：LVDS
- Operating temperature：0 ~ 50 °C 存储温度: -20 ~ 60 °C
- life：30K小时,不含驱动
- Types of：WLED
- MV215FHM-N40是京东方 (BOE)推出的一款21.5英寸a - Si TFT - LCD液晶模组产品。其详细参数如下：
1. 基本信息：装配WLED背光，无背光驱动，无触摸，表面雾面，Hard coating (3H)，工作温度0~50°C，存储温度-20~60°C，耐振动性1.5G (14.7m/s²)，产品处于量产中。
2. 显示参数：显示分辨率1920(RGB)×1080 (FHD)，宽高比16∶9，像素采用RGB垂直条状排列，显示区域尺寸476.064×267.786 (宽×高) mm，可视尺寸无具体数据，外观尺寸484.5(宽)×284.4(高) mm，外观厚度8.55/13.2 (Typ./Max.)mm，亮度250cd/m²，对比度1000∶1，可视角度89/89/89/89 (Typ.)(CR≥10) (左/右/上/下)，最佳视角为全视角，响应时间14 (Typ.)(Tr/Td) ms，显示颜色16.7M (6 - bit + Hi - FRC)，色域73% (NTSC)，垂直刷新率无具体数据。
3. 背光参数：采用WLED发光的侧入式光源(底部)，使用寿命30K小时，不含背光驱动。
4. 接口参数：采用LVDS (2 ch, 8 - bit)信号接口，总共30 pins，采用端子连接，驱屏电压5.0V (Typ.)。
MV215FHM-N40 is a 21.5-inch a-Si TFT-LCD module launched by BOE. Its detailed parameters are as follows:
1. Basic Information: Equipped with WLED backlight, no backlight driver, no touch function. The surface is matte with Hard coating (3H). The operating temperature range is 0~50°C, and the storage temperature range is -20~60°C. The vibration resistance is 1.5G (14.7m/s²), and the product is in mass production.
2. Display Parameters: The display resolution is 1920(RGB)×1080 (FHD) with an aspect ratio of 16∶9. Pixels are arranged in RGB vertical stripes. The display area size is 476.064×267.786 (width×height) mm, and there is no specific data for the visible size. The overall dimension is 484.5 (width)×284.4 (height) mm, and the overall thickness is 8.55/13.2 (Typ./Max.) mm. The brightness is 250cd/m², and the contrast ratio is 1000∶1. The viewing angles are 89/89/89/89 (Typ.)(CR≥10) (left/right/top/bottom), with the best viewing angle being full viewing angle. The response time is 14 (Typ.)(Tr/Td) ms. The display color is 16.7M (6-bit + Hi-FRC), the color gamut is 73% (NTSC), and there is no specific data for the vertical refresh rate.
3. Backlight Parameters: It uses a bottom-edge side-in type light source with WLED illumination, has a service life of 30K hours, and does not include a backlight driver.
4. Interface Parameters: It adopts an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, uses terminal connection, and the driving voltage for the screen is 5.0V (Typ.).
1. Basic Information: Equipped with WLED backlight, no backlight driver, no touch function. The surface is matte with Hard coating (3H). The operating temperature range is 0~50°C, and the storage temperature range is -20~60°C. The vibration resistance is 1.5G (14.7m/s²), and the product is in mass production.
2. Display Parameters: The display resolution is 1920(RGB)×1080 (FHD) with an aspect ratio of 16∶9. Pixels are arranged in RGB vertical stripes. The display area size is 476.064×267.786 (width×height) mm, and there is no specific data for the visible size. The overall dimension is 484.5 (width)×284.4 (height) mm, and the overall thickness is 8.55/13.2 (Typ./Max.) mm. The brightness is 250cd/m², and the contrast ratio is 1000∶1. The viewing angles are 89/89/89/89 (Typ.)(CR≥10) (left/right/top/bottom), with the best viewing angle being full viewing angle. The response time is 14 (Typ.)(Tr/Td) ms. The display color is 16.7M (6-bit + Hi-FRC), the color gamut is 73% (NTSC), and there is no specific data for the vertical refresh rate.
3. Backlight Parameters: It uses a bottom-edge side-in type light source with WLED illumination, has a service life of 30K hours, and does not include a backlight driver.
4. Interface Parameters: It adopts an LVDS (2 ch, 8-bit) signal interface with a total of 30 pins, uses terminal connection, and the driving voltage for the screen is 5.0V (Typ.).
