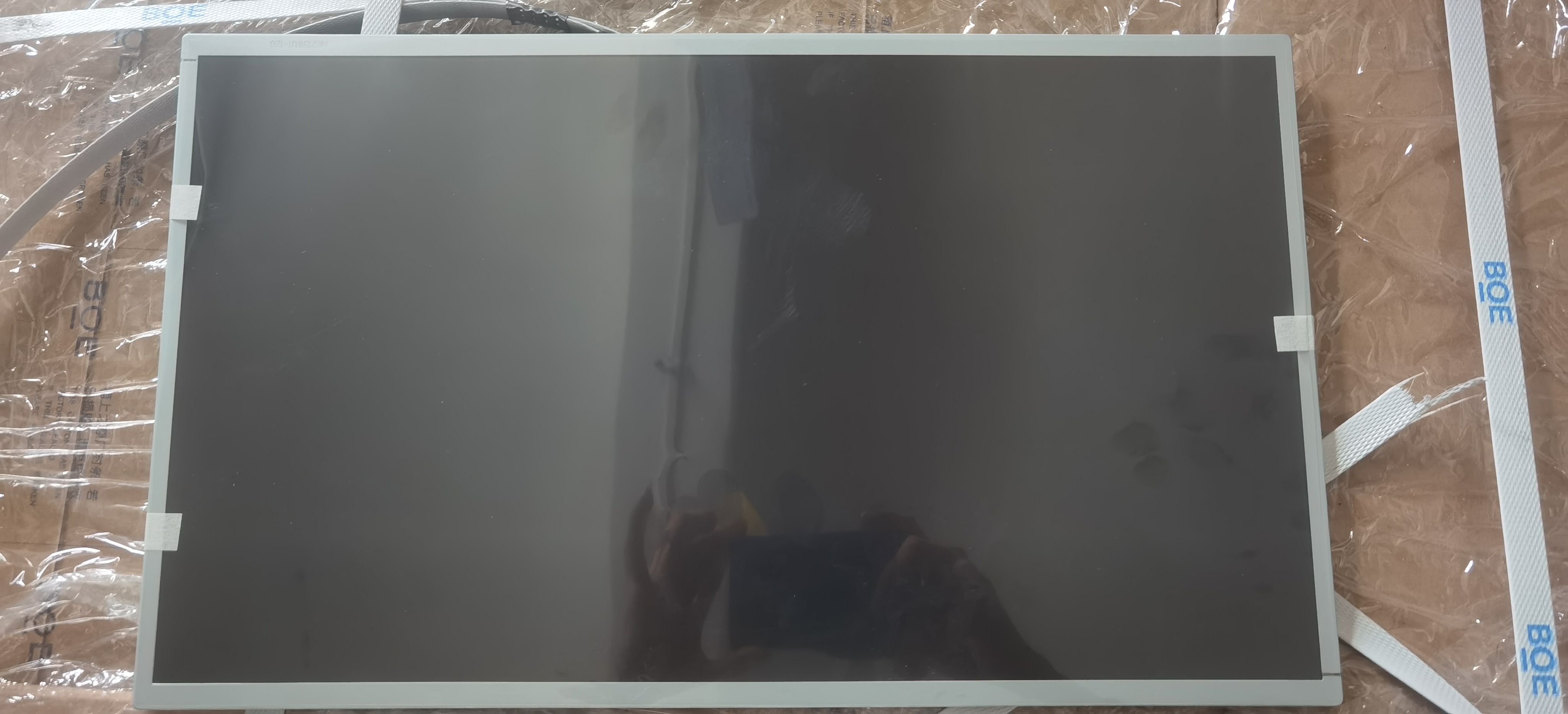

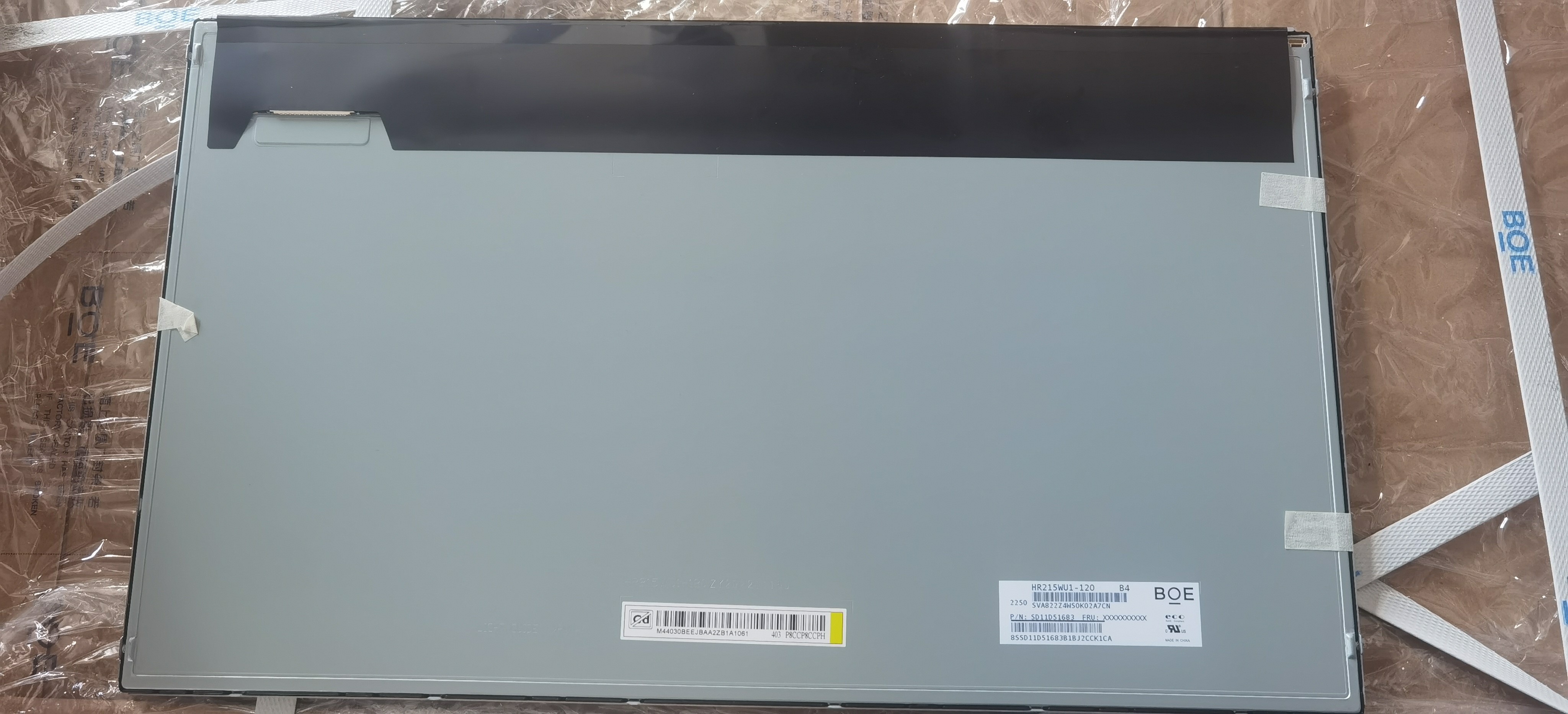

- 京东方21.5寸液晶屏HR215WU1-120规格书工业屏一体机触显广告机
-
- Brand：京东方BOE
- Size：21.5寸京东方液晶屏
- Model：HR215WU1-120
- Resolution：1920*1080
- Vision：89/89/89/89
- Contrast：1000:1
- brightness：250mits
- interface：LVDS
- Operating temperature：工作: 0 ~ 50 °C ; 存储: -20 ~ 60 °C
- life：30000
- Types of：WLED
- HR215WU1-120 launched by BOE (Beijing Oriental Enterprise Holding Co., Ltd.) is a 21.5-inch liquid crystal module product adopting a-Si TFT-LCD technology. It is equipped with a WLED backlight, has no backlight driver, and no touch function. Panelook summarizes its typical features as: white light LED backlight, flip-chip terminals, matte surface, ES 8.0, TCO8.0 compliant. Its operating temperature is 0 ~ 50°C, the storage temperature is -20 ~ 60°C, and the vibration resistance is 1.5G (14.7 m/s²). This model is recommended for use in computer monitors. According to the information mastered by Panelook, this product entered mass production in Q1 of 2013, and the current production status is in mass production. Currently, there are 50 spot information and 54 supplier information of HR215WU1-120 on Panelook, and it is one of the main model products in the current Panelook market transactions. Panelook first established the parameters for this model on November 12, 2013, and the parameters were last updated on November 04, 2022. As an ADS, normally black display, transmissive liquid crystal module product, HR215WU1-120 can provide a display brightness of 250 cd/m², a transmissive contrast ratio of 1000:1, and a viewing angle of 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D). The best viewing angle is a full viewing angle, and its response time is 14 (Typ.)(Tr+Td) ms. Since each pixel uses a 6-bit + Hi-FRC grayscale signal, this product can display 16.7 million colors, and its color saturation also reaches 72% (NTSC). In terms of the backlight, this product uses a side-in type light source (bottom) with 17S4P WLED lighting. The service life of the light source is 30,000 hours, and it does not include a backlight driver. HR215WU1-120 adopts an LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, using terminal connection, and the panel driving voltage is 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you plan to use the HR215WU1-120 liquid crystal module for new product development, Panelook® recommends that you consult BOE or its agents for the latest production status information and technical information about HR215WU1-120. The panel parameters displayed on Panelook® are all entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets!
Application Details of BOE Liquid Crystal Module HR215WU1-120
Basic Information: Manufacturer: BOE Model: HR215WU1-120 Type: a-Si TFT-LCD, Liquid Crystal Module Application Product: Computer Monitor Diagonal Size: 21.5" Model Alias: -
Application Environment: Storage Temperature: -20 ~ 60 °C Operating Temperature: 0 ~ 50 °C RoHS: RoHS Compliance Vibration Resistance: 1.5G (14.7 m/s²)
Typical Features: White light LED backlight, flip-chip terminals, matte surface
Remarks: ES 8.0, TCO8.0 compliant
Structural Details of BOE Liquid Crystal Module HR215WU1-120
Pixel Characteristics: Resolution: 1920(RGB)×1080, FHD Dot Pitch (mm): 0.08275×0.24825 (H×V) Pixel Arrangement: RGB vertical stripes 【Copyright of Panelook. Plagiarism is strictly prohibited】
LCR Vertical Stripe: Left-center-right vertical stripes
Rectangle: Square
RGB Delta: Red-green-blue triangle
RGB Horizontal Stripe: Red-green-blue horizontal stripes
RGB Vertical Stripe: Red-green-blue vertical stripes
RGBW Rectangle: Red-green-blue-white square
RG/BW PenTile: (Red-green)(Blue-white) vertical stripes
RG/BG PenTile: (Red-green)(Blue-green) vertical stripes
RGBY Vertical Stripe: Red-green-blue-yellow vertical stripes Pixel Spacing (mm): 0.24825×0.24825 (H×V) [102PPI]
Structural Dimensions: Display Area (mm): 476.64(H) × 268.11(V) Opening Area (mm): 479.8(H) × 271.3(V) Appearance Size (mm): 495.6(H) × 292.2(V) Appearance Thickness (mm): 8.2/11.3 (Typ./Max.)
Appearance Features: Physical Shape: Planar rectangle, with a frame Appearance Style: - Aspect Ratio: 16:9 (H:V) Landscape/Portrait: Landscape mode
Mounting Method: Side mounting holes (4-M3) on left, right bezel
Other Parameters: Weight: 1.79Kgs (Typ.) Surface Treatment: Matte surface, Hard coating (3H)
Disclaimer: The data is entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets.
Optical Details of BOE Liquid Crystal Module HR215WU1-120
Basic Information: Display Brightness: 250 cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (Transmissive) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Display Mode: ADS, normally black display, transmissive Recommended Viewing Angle: Full viewing angle Response Time (ms): 14 (Typ.)(Tr+Td)
Color Performance: White Coordinates: Wx: 0.313; Wy: 0.329 Supported Colors: 16.7M (6-bit + Hi-FRC) Color Temperature: 6485K Luminance Uniformity: 1.33 (Max.)(9 points) Luminance uniformity = maximum value / minimum value
1931 Color Gamut: NTSC Ratio: 74% sRGB Coverage: 97% Adobe RGB Coverage: 75% DCI-P3 Coverage: 77% Rec.2020 Coverage: 55% Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Disclaimer: The data is entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets!
Electronic Details of BOE Liquid Crystal Module HR215WU1-120
Frame Frequency: 60Hz 【Copyright of Panelook. Plagiarism is strictly prohibited】
120Hz (60HZ input): Built-in MEMC circuit
120Hz+120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ input): Built-in MEMC circuit
Reverse Scanning: No
Total Power Consumption: 10.21/14.26W (Typ./Max.)
Signal Details of BOE Liquid Crystal Module HR215WU1-120
Signal Electrical: Voltage Supply: 5.0V (Typ.) Current Supply: 0.5/1.2A (Typ./Max.) Power Consumption: 2.5/6.0W (Typ./Max.)
Signal Type: LVDS (2 ch, 8-bit) Logic Voltage: -
Interface Features: Position: Lower right of the screen body ┛ Type: Terminal
Interface Details: Brand Model Pin Pitch Number of Pins Quantity Pin Definition Panelook Internal Code Uniwill IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A
Disclaimer: The data is entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets!
Light Source Details of BOE Liquid Crystal Module HR215WU1-120
Light Source Characteristics: Light Source Type: WLED Quantity: 17S4P Light Source Life: 30K (Min.) hours Replaceable: - Shape: 4 strings Light Source Position: Side-in type light source (bottom)
Lamp Electrical: Voltage Supply: 41.6/44.8/48V (Min./Typ./Max.) Current Supply: 43mA Power Consumption: 7.71/8.26W (Typ./Max.) Sum of power consumption of all lamps
Interface Features: Position: Lower left corner Type: Terminal
Interface Details: Brand Model Pin Pitch Number of Pins Quantity Pin Definition 【Copyright of Panelook. Plagiarism is strictly prohibited】
H: High voltage
N: Empty pin
L: Low voltage
A: Anode
C: Cathode Endeli 3708K-Q06N-08X 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Light Source Drive: None
Packaging Details of BOE Liquid Crystal Module HR215WU1-120
Packaging Box: Quantity per Box Weight Size of the Packaging Box
12 pcs / box 23.8 Kgs 563×338×390 mm (L×W×H)
P270HVN02.0 替代M270HVN02.0
G150XVN01.0原装，
LQ150X1LG92原装
M170ETN01.1原装+组装
P170ETN01.0原装
M190ETN01.0原装+组装
G190ETN01.0原装+组装
G190ETN01.1原装
G156HTN02.1原装
M185XTN01.2组装
M190PW01 V8 组装
P215HVN01.0原装
T215HVN01.1玻璃+组装
HR215WU1-120原装
P270HⅤN02.0原装+组装
P320HVN02.0原装
LC320EUJ-FFE2组装
T320HVN05.6组装
HV320FHB-F40玻璃+模组
T420HVN08.0原装
LC430EGG-FKM1原装
欢迎来电询价，手机微信同号:15919499179
深圳市凯显科技有限公司
冯刚：15919499179
QQ：80067093
地址：深圳宝安区石岩应人石永新街三和工业园C栋6楼
京东方 (BOE) 推出的HR215WU1-120是一款采用a-Si TFT-LCD技术的21.5英寸液晶模组产品，它装配有WLED背光，无背光驱动，无触摸。屏库总结它的典型特征为: 白光LED背光，端子倒装，表面雾面， ES 8.0 ,TCO8.0 compliant。它的工作温度为 0 ~ 50°C，存储温度为 -20 ~ 60°C，耐振动性为1.5G (14.7 m/s²)。此型号推荐使用于电脑显示器。根据屏库掌握的情报此产品于2013年Q1量产，当前生产状态为量产中。目前HR215WU1-120在屏库上有50条现货信息、54家供应商信息，属于目前屏库市场交易的主力型号产品。屏库于2013年11月12日对此型号首次建立参数，并于2022年11月04日对参数进行了最后更新。作为一款ADS，常黑显示，透射式液晶模组产品，HR215WU1-120可以提供250 cd/m²的显示亮度 1000:1的透射对比度，以及89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)的可视角度，最佳观看角度为全视角，它的响应时间为14 (Typ.)(Tr+Td) ms。由于每个像素点采用了6-bit + Hi-FRC灰阶信号，此产品可以显示16.7M颜色，其显示的色彩饱和度也达到了72% (NTSC)。背光方面此产品采用了17S4P WLED发光的侧入式光源(底部)，光源的使用寿命为30K小时，不含背光驱动。HR215WU1-120采用了LVDS (2 ch, 8-bit)信号接口，总共30 pins，采用端子连接，驱屏电压为5.0V (Typ.)。它的典型垂直刷新率Fv为60Hz。如果开发新产品想采用HR215WU1-120液晶模组，屏库®建议您向京东方 (BOE)或其代理商了解关于HR215WU1-120的最新的生产状态信息和技术信息。屏库®上所显示的面板参数均由屏库电子工程师依据规格书录入，已尽力减少错误，但不能保证参数的完全正确。请以规格书为准！
-
-
-
-
- 免责声明 : 数据由屏库电子工程师依据规格书录入，已尽力减少错误，但不能保证参数的完全正确。请以规格书为准
- 免责声明 : 数据由屏库电子工程师依据规格书录入，已尽力减少错误，但不能保证参数的完全正确。请以规格书为准！
- 免责声明 : 数据由屏库电子工程师依据规格书录入，已尽力减少错误，但不能保证参数的完全正确。请以规格书为准！
京东方液晶模组HR215WU1-120 应用详情
| 基础信息 : |
制造商
型号
HR215WU1-120
类型
a-Si TFT-LCD , 液晶模组
应用产品
对角尺寸
型号别名
-
|
|---|---|
| 应用环境 : |
存储温度
-20 ~ 60 °C
工作温度
0 ~ 50 °C
RoHS
抗振性能
1.5G (14.7 m/s²)
|
| 典型特征 : |
|
| 备注信息 : |
ES 8.0 ,TCO8.0 compliant
|
京东方液晶模组HR215WU1-120 结构详情
| 像素特征 : |
解析度
1920(RGB)×1080, FHD
点间距(mm)
0.08275×0.24825 (H×V)
像素排列
RGB垂直条状
像素间距(mm)
0.24825×0.24825 (H×V) [102PPI]
|
|---|---|
| 结构尺寸 : |
显示区域(mm)
476.64(H) × 268.11(V)
开口区域(mm)
479.8(H) × 271.3(V)
外观尺寸(mm)
495.6(H) × 292.2(V)
外观厚度(mm)
8.2/11.3 (Typ./Max.)
|
| 外观特征 : |
物理形状
平面矩形, 有边框
外观样式
-
宽高比
16:9 (H:V)
风景肖像
风景模式
|
| 安装方式 : |
Side mounting holes (4-M3) on left, right bezel
|
| 其它参数 : |
重量
1.79Kgs (Typ.)
表面处理
雾面，Hard coating (3H)
|
京东方液晶模组HR215WU1-120 光学详情
| 基础信息 : |
显示亮度
250 cd/m² (Typ.)
对比度
1000:1 (Typ.) (透射)
可视角度
89/89/89/89 (Typ.)(CR≥10)
显示模式
ADS，常黑显示，透射式
推荐视角
全视角
响应时间(ms)
14 (Typ.)(Tr+Td)
|
|---|---|
| 色彩性能 : |
白色坐标
Wx:0.313; Wy:0.329
支持颜色
16.7M (6-bit + Hi-FRC)
色温
6485K
亮度均匀性
1.33 (Max.)(9 points)
|
| 1931色域 : |
NTSC比值
74%
sRGB覆盖率
97%
Adobe RGB覆盖率
75%
DCI-P3覆盖率
77%
Rec.2020覆盖率
55%
色域说明
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
京东方液晶模组HR215WU1-120 电子详情
| 帧频率 : |
60Hz
|
|---|---|
| 翻转扫描 : |
No
|
| 功率总耗: |
10.21/14.26W (Typ./Max.)
|
京东方液晶模组HR215WU1-120 信号详情
| 信号电气 : |
电压供应
5.0V (Typ.)
电流供应
0.5/1.2A (Typ./Max.)
功率消耗
2.5/6.0W (Typ./Max.)
|
|---|---|
| 信号类型 : |
LVDS (2 ch, 8-bit)
逻辑电压
-
|
| 接口特征 : |
位置
类型
端子
|
| 接口详情 : |
品牌
型号
脚距
脚数
数量
脚定义
宇宙
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A
|
京东方液晶模组HR215WU1-120 光源详情
| 光源特征 : |
光源类型
WLED
数量
17S4P
光源寿命
30K (Min.) 小时
是否可换
-
形状
4串
光源位置
侧入式光源(底部)
|
|---|---|
| 灯管电气 : |
电压供应
41.6/44.8/48V (Min./Typ./Max.)
电流供应
43mA
功率消耗
7.71/8.26W (Typ./Max.)
|
| 接口特征 : |
位置
类型
端子
|
| 接口详情 : |
品牌
型号
脚距
脚数
数量
脚定义
恩得利
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
|
| 光源驱动 : |
无
|
京东方液晶模组HR215WU1-120 包装详情
| 包装箱 : | 每箱数量 | 重量 | 包装箱尺寸 |
|---|---|---|---|
| 12 pcs / box | 23.8 Kgs | 563×338×390 mm (L×W×H) |
