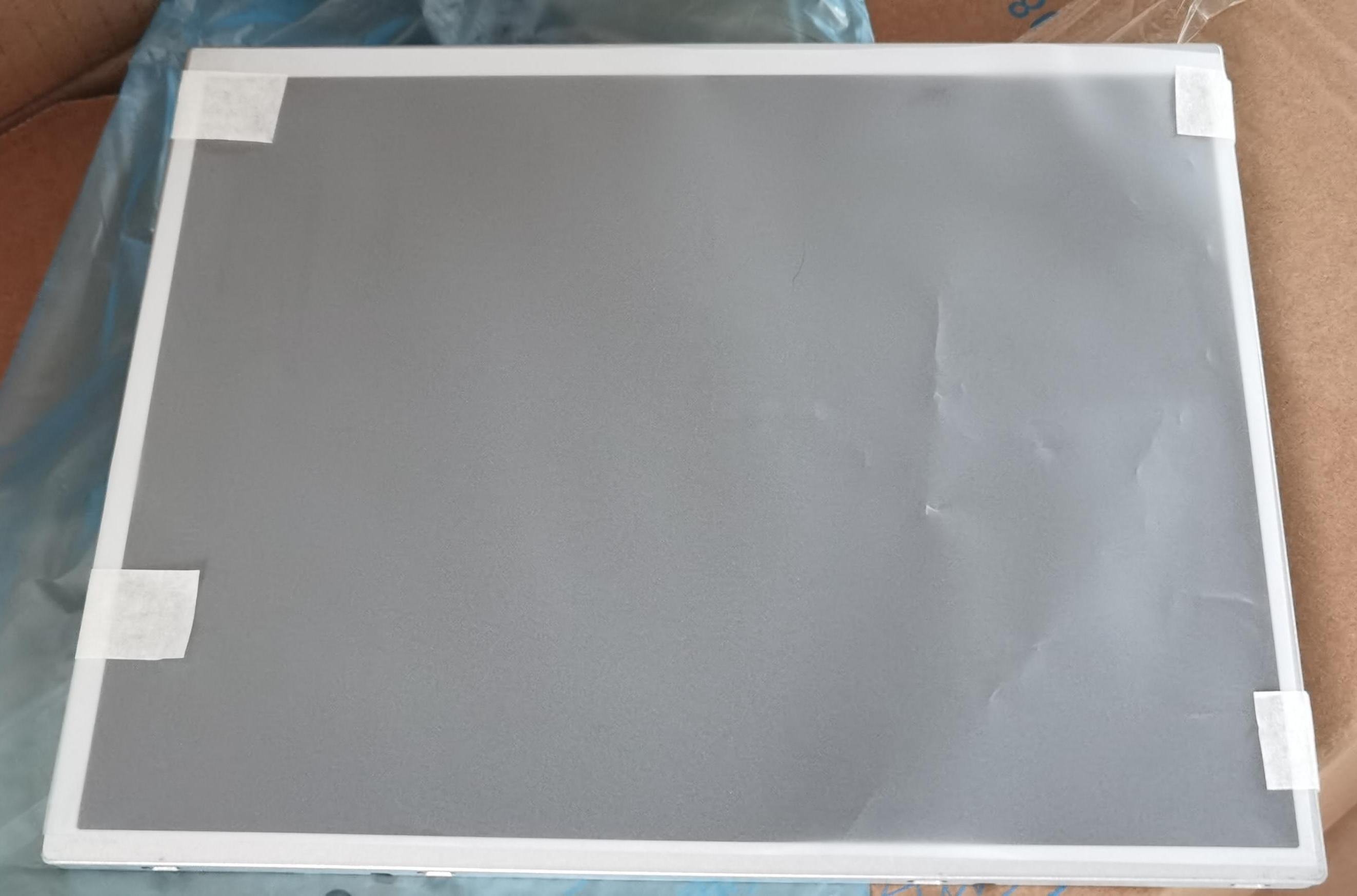

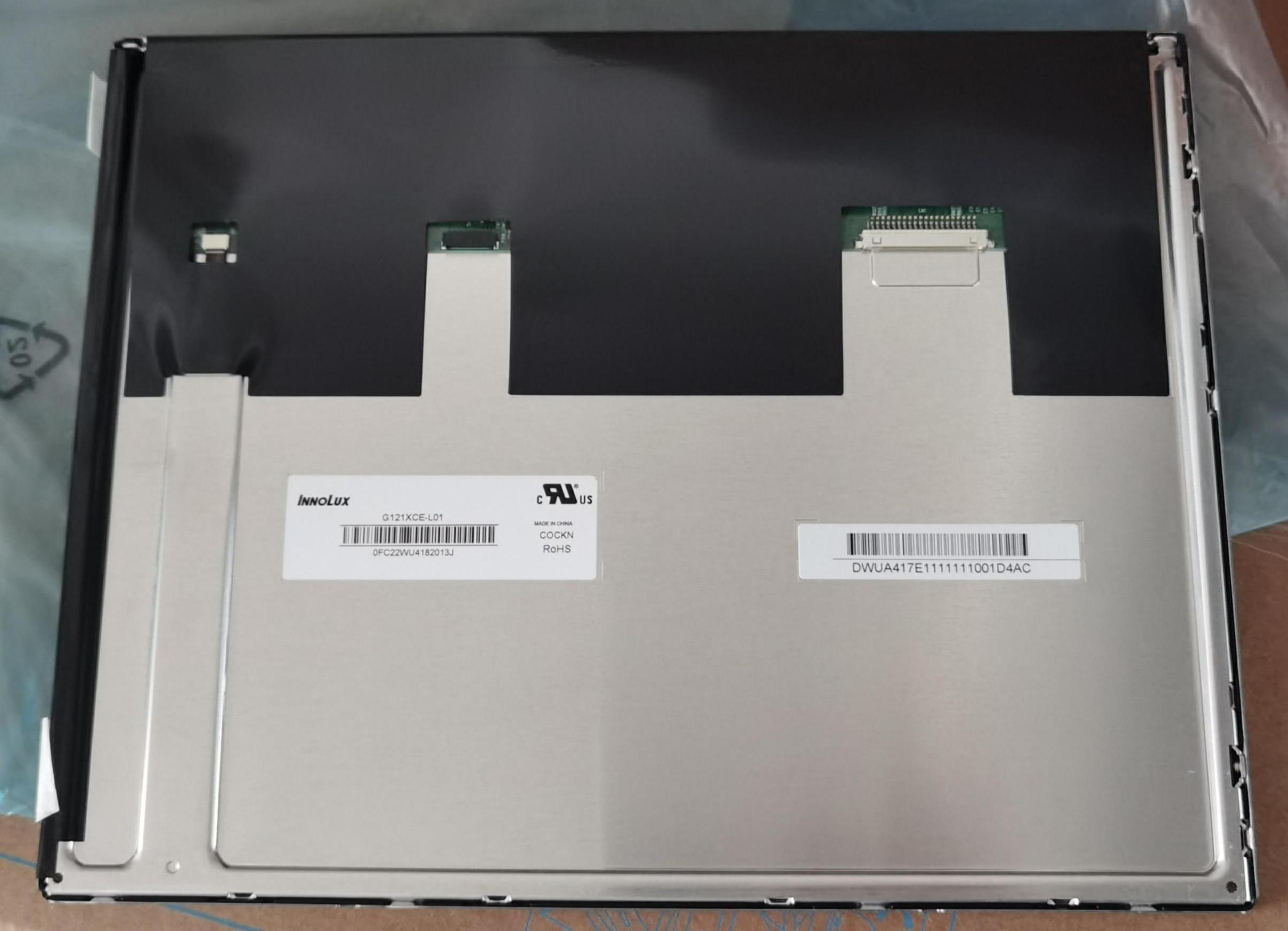

- 奇美群创12.1寸G121XCE-L01广告机屏 POS机 一体机 平板屏幕
-
- Brand：奇美
- Size：12.1寸
- Model：G121XCE-L01
- Resolution：1024*768
- Vision：89/89/89/89
- Contrast：1000:1
- brightness：600cd/m²
- interface：LVDS
- Operating temperature：-30 ~ 85 °C 存储温度: -40 ~ 90 °C
- life：50K小时,不含驱动
- Types of：WLED
- G121XCE-L01 is a 12.1-inch industrial LCD screen launched by CHI MEI/INNOLUX. The following are its parameters:
1. Basic Information: The panel brand is CHI MEI/INNOLUX; the panel model is G121XCE-L01; the operating temperature is -30~85°C; the storage temperature is -40~90°C; the production status is in mass production.
2. Structural Features: The size of the LCD screen is 12.1 inches; the dot resolution is 1024×768; the pixel arrangement is RGB vertical stripes; the aspect ratio is 4∶3 (width∶height); the pixel pitch is 0.240(H)×0.240(V); the panel weight is 520g (Typ.); the surface treatment is Hard coating (3H) with anti-glare; the display area is 245.76(H)×184.32(V); the visible area is 249.0×187.5; the overall dimensions are 260.5×204 (horizontal×vertical); the overall thickness is 8.4 (Typ.) (thickness); there is no touch screen.
3. Optical Features: The display mode is transmissive; the LCD brightness is 600cd/m² (Typ.); the contrast ratio is 1000∶1 (Typ.); the display colors are 262k/16.2M; the response time is 13/18 (Typ.) (Tr/Td) (ms); the viewing angle is 89/89/89/89 (Typ.) (CR≥10) (left/right/up/down); the optimal viewing angle is full viewing angle; it is readable under sunlight.
4. Lighting System: The lamp position is edge-lit light source; the light source type is WLED; the light source life is 50K (Min.) (hours).
5. Signal Interface: The major signal type is LVDS; the minor signal type is LVDS (1 ch, 8 - bit); the interface type is terminal; the interface pin pitch is 1.0mm; the number of interfaces is 1 pcs; the number of interface pins is 30 pins.
G121XCE-L01是奇美（CHI MEI/INNOLUX）推出的一款12.1寸工业液晶屏，以下是它的参数：
1. 基本信息：面板品牌为奇美（CHI MEI/INNOLUX）；面板型号为G121XCE-L01；工作温度-30~85°C；存储温度-40~90°C；生产状态为量产中。
2. 结构特征：液晶屏尺寸12.1英寸；点分辨率1024×768；像素排列为RGB垂直条状；宽高比4∶3（宽∶高）；像素间距0.240(H)×0.240(V)；面板重量520g（Typ.）；表面处理为Hard coating (3H)，抗眩光；显示区域245.76(H)×184.32(V)；可视区域249.0×187.5；外观尺寸260.5×204 (横×竖)；外观厚度8.4 (Typ.)(厚度)；触摸屏无。
3. 光学特征：显示模式为透射式；液晶屏亮度600cd/m² (Typ.)；对比度1000∶1 (Typ.)；显示颜色262k/16.2M；响应时间13/18(Typ.)(Tr/Td)(ms)；可视角度89/89/89/89 (Typ.)(CR≥10)(左/右/上/下)；最佳视角为全视角；阳光下可读。
4. 发光系统：灯管位置为侧入式光源；光源类型为WLED；光源寿命50K(Min..)(小时)。
5. 信号接口：信号大类为LVDS；信号小类为LVDS(1 ch，8 - bit)；接口类型为端子；接口脚距1.0mm；接口数量1 pcs；接口脚数30 pins。
1. 基本信息：面板品牌为奇美（CHI MEI/INNOLUX）；面板型号为G121XCE-L01；工作温度-30~85°C；存储温度-40~90°C；生产状态为量产中。
2. 结构特征：液晶屏尺寸12.1英寸；点分辨率1024×768；像素排列为RGB垂直条状；宽高比4∶3（宽∶高）；像素间距0.240(H)×0.240(V)；面板重量520g（Typ.）；表面处理为Hard coating (3H)，抗眩光；显示区域245.76(H)×184.32(V)；可视区域249.0×187.5；外观尺寸260.5×204 (横×竖)；外观厚度8.4 (Typ.)(厚度)；触摸屏无。
3. 光学特征：显示模式为透射式；液晶屏亮度600cd/m² (Typ.)；对比度1000∶1 (Typ.)；显示颜色262k/16.2M；响应时间13/18(Typ.)(Tr/Td)(ms)；可视角度89/89/89/89 (Typ.)(CR≥10)(左/右/上/下)；最佳视角为全视角；阳光下可读。
4. 发光系统：灯管位置为侧入式光源；光源类型为WLED；光源寿命50K(Min..)(小时)。
5. 信号接口：信号大类为LVDS；信号小类为LVDS(1 ch，8 - bit)；接口类型为端子；接口脚距1.0mm；接口数量1 pcs；接口脚数30 pins。
