M220ZGE-L20 launched by Chimei Innolux is a 22.0-inch liquid crystal module product adopting a-Si TFT-LCD technology. It is equipped with a WLED backlight, has no backlight driver, and no touch function. Panelook summarizes its typical features as: sRGB, white light LED backlight, front-mounted terminals, matte surface, and Energy Star 7.0 Compliance. Its operating temperature is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. This model is recommended for use in computer monitors. According to the information mastered by Panelook, this product entered mass production in Q1 of 2012, and the current production status is in mass production. Currently, there are 29 spot information and 33 supplier information of M220ZGE-L20 on Panelook, and it is one of the main model products in the current Panelook market transactions. Panelook first established the parameters for this model on August 30, 2012, and the parameters were last updated on March 10, 2022. As a TN, normally white display, transmissive liquid crystal module product, M220ZGE-L20 can provide a display brightness of 250 cd/m², a transmissive contrast ratio of 1000:1, and a viewing angle of 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D). Its response time is 1.3/3.7 (Typ.)(Tr/Td) ms. Since each pixel uses an 8-bit grayscale signal, this product can display 16.7 million colors, and its color saturation also reaches 72% (NTSC). In terms of the backlight, this product uses a side-in type light source (right side) with 12S4P WLED lighting. The service life of the light source is 40,000 hours, and it does not include a backlight driver. M220ZGE-L20 adopts an LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, using terminal connection, and the panel driving voltage is 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you plan to use the M220ZGE-L20 liquid crystal module for new product development, Panelook® recommends that you consult Chimei Innolux or its agents for the latest production status information and technical information about M220ZGE-L20. The panel parameters displayed on Panelook® are all entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets!

Application Details of Chimei Liquid Crystal Module M220ZGE-L20
Basic Information: Panel Brand: Chimei Panel Model: M220ZGE-L20 Panel Size: 22.0 inches Panel Application: Computer Monitor Panel Type: a-Si TFT-LCD, Liquid Crystal Module Model Alias: -
Working Environment: Operating Temperature: 0 ~ 50 °C Storage Temperature: -20 ~ 60 °C RoHS Status: RoHS Compliance Vibration Resistance: -
Typical Features: sRGB, White Light LED Backlight, Front-mounted Terminals, Matte Surface
Remarks: Energy Star 7.0 Compliance

Structural Details of Chimei Liquid Crystal Module M220ZGE-L20
Pixel Characteristics: Number of Pixels: 1680(RGB)×1050, WSXGA+ Dot Pitch: 0.094×0.282 mm (H×V) Pixel Layout: RGB vertical stripes 【Copyright of Panelook. Plagiarism is strictly prohibited】
LCR Vertical Stripe: Left-center-right vertical stripes
Rectangle: Square
RGB Delta: Red-green-blue triangle
RGB Horizontal Stripe: Red-green-blue horizontal stripes
RGB Vertical Stripe: Red-green-blue vertical stripes
RGBW Rectangle: Red-green-blue-white square
RG/BW PenTile: (Red-green)(Blue-white) vertical stripes
RG/BG PenTile: (Red-green)(Blue-green) vertical stripes
RGBY Vertical Stripe: Red-green-blue-yellow vertical stripes Pixel Spacing: 0.282×0.282 mm (H×V) [90PPI]
Structural Dimensions: Display Area: 473.76×296.1 mm (H×V) Visible Area: 477.7×300.1 mm (H×V) Appearance Size: 493.7×320.1 mm (H×V) Appearance Thickness: 11.0±0.5 mm
Appearance Features: Appearance Shape: Planar rectangle, with a frame Landscape/Portrait: Landscape mode Aspect Ratio: 16:10 (H:V) Appearance Style: -
Mounting Hole Positions: Side mounting holes (4-M3) on up, down bezel
Other Characteristics: Weight: 2.10/2.25Kgs (Typ./Max.) Surface Treatment: Matte surface (Haze 25%), Hard coating (3H)
Disclaimer: The data is entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets!

Optical Details of Chimei Liquid Crystal Module M220ZGE-L20
Basic Information: Panel Brightness: 250 cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (Transmissive) Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Optical Mode: TN, Normally White Display, Transmissive Best Viewing Angle: - Response Time: 1.3/3.7 (Typ.)(Tr/Td) ms
Color Performance: White Chromaticity: Wx: 0.313; Wy: 0.329 Display Colors: 16.7M (8-bit) Color Temperature: 6485K Luminance Variation: 1.33 (Max.)(9 points) Luminance variation = maximum value / minimum value
1931 Color Gamut: NTSC Ratio: 76% sRGB Coverage: 98% Adobe RGB Coverage: 76% DCI-P3 Coverage: 79% Rec.2020 Coverage: 57% Color Gamut Description: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Electronic Details of Chimei Liquid Crystal Module M220ZGE-L20
Operating Frequency: 60Hz 【Copyright of Panelook. Plagiarism is strictly prohibited】
120Hz (60HZ input): Built-in MEMC circuit
120Hz+120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ input): Built-in MEMC circuit
Reverse Scanning: No
Power Consumption: 15.76W (Max.)

Signal Details of Chimei Liquid Crystal Module M220ZGE-L20
Signal System: LVDS (2 ch, 8-bit) Signal Logic Voltage: -
Signal Electrical: Voltage Input: 5.0V (Typ.) Current Input: 0.65/0.90A (Typ./Max.) Power Consumption: 3.25/4.5W (Typ./Max.)
Interface Features: Type: Terminal Position: Upper right of the screen body ┓
Terminal Details: Brand Model Pin Pitch Number of Pins Quantity Interface Definition Panelook Code Foxconn GS23302-0311R-7H 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A
Disclaimer: The data is entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets! Return to Top

Packaging Details of Chimei Liquid Crystal Module M220ZGE-L20

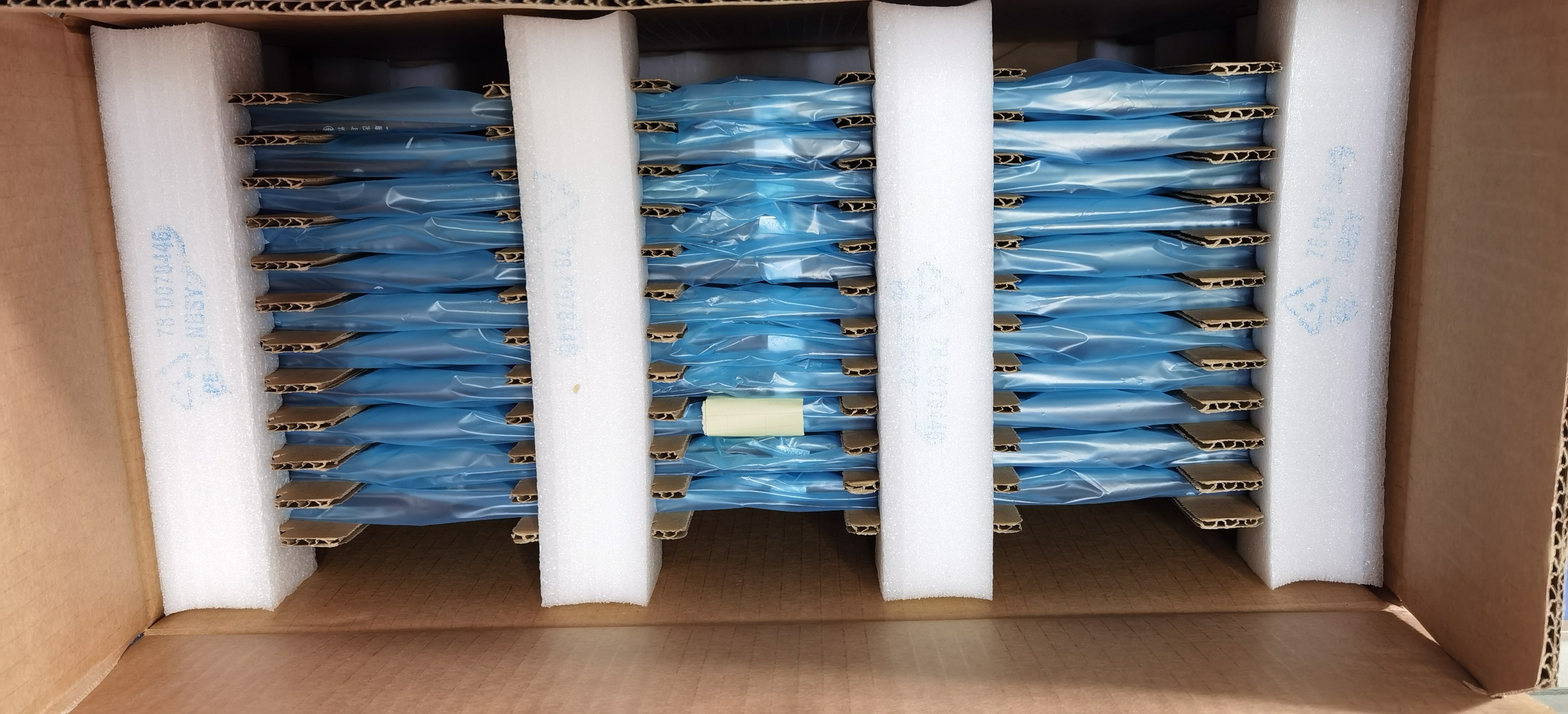

Packaging Box: Quantity Weight Size (L×W×H)
11 pcs / box 28.8 Kgs 567×278×417 mm
