友达21.5寸LED液晶屏T215HVN01.1规格书工业屏一体机触显广告机
  • Brand:友达AUO
  • Size:21.5寸宽屏
  • Model:T215HVN01.1
  • Resolution:1920×1080
  • Vision:89/89/89/89
  • Contrast:3000:1
  • brightness:250 cd/m²
  • interface:30 pins
  • Operating temperature:: 0 ~ 50 °C 存储温度: -20 ~ 60 °C
  • life:30K小时,不含驱动
  • Types of:15S4P WLED

T215HVN01.1 launched by AU Optronics (AUO) is a 21.5-inch liquid crystal module product adopting a-Si TFT-LCD technology. It is equipped with a WLED backlight, has no backlight driver, and no touch function. Panelook summarizes its typical features as: white light LED backlight, front-mounted terminals, matte surface, and TCO 7.0 Compliance. Its operating temperature ranges from 0 °C to 50 °C, the storage temperature ranges from -20 °C to 60 °C, and its vibration resistance is 1.5G (14.7 m/s²). This model is recommended for use in computer monitors and televisions. According to the information mastered by Panelook, this product entered mass production in Q4 of 2014, and the current production status is in mass production. Currently, there are 58 spot information and 59 supplier information of T215HVN01.1 on Panelook, and it is one of the main model products in the current Panelook market transactions. Panelook first established the parameters for this model on November 11, 2014, and the parameters were last updated on October 22, 2020. As a VA, normally black display, transmissive liquid crystal module product, T215HVN01.1 can provide a display brightness of 250 cd/m², a transmissive contrast ratio of 3000:1, and a viewing angle of 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D). The best viewing angle is full viewing angle, and its response time is 13/5 (Typ.)(Tr/Td) ms. Since each pixel uses an 8-bit grayscale signal, this product can display 16.7 million colors, and its color saturation also reaches 74% (NTSC). In terms of the backlight, this product uses a side-in type light source (bottom) with 15S4P WLED lighting. The service life of the light source is 30,000 hours, and it does not include a backlight driver. T215HVN01.1 adopts an LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, using terminal connection, and the panel driving voltage is 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you plan to use the T215HVN01.1 liquid crystal module for new product development, Panelook® recommends that you consult AU Optronics (AUO) or its agents for the latest production status information and technical information about T215HVN01.1. The panel parameters displayed on Panelook® are all entered by Panelook's electronic engineers based on the specification sheets. Every effort has been made to reduce errors, but the complete accuracy of the parameters cannot be guaranteed. Please refer to the specification sheets!
T215HVN01.1 Basic Parameters
Manufacturer (Productor): AU Optronics/AUO
Product Model (MODEL): T215HVN01.1
Screen Size (Size): 21.5"
Resolution (Resolution): 1920×1080
Resolution Abbreviation (Resolution Name): FHD
Display Ratio (Display scale): 16:9
Pixel Arrangement (Pixel Arrangement): RGB vertical stripes
Dot Pitch (Pixel Pitch): 0.08275×0.24825 mm
Product Composition (Panel Composition): Liquid crystal panel
Panel Type (Technology): a-Si TFT-LCD
Main Applications (Applications): [Computer Monitor]
Notable Features (Panel Features): [Wide color gamut], [White light LED], [Matte surface], [Wide viewing angle]
T215HVN01.1 Optoelectronic Parameters
Display Mode (Display mode): TN, normally white display, transmissive
Brightness (Luminance): 250 nits
Contrast Ratio (Contrast Ratio): 3000:1
Color (Color): 16.7 million
Color Saturation (Color Saturation): 72% NTSC (CIE1931)
Response Time (Response): 3.8/1.2 (Tr/Td) ms
Viewing Angle (Viewing Angle): 89/89/89/89 (up/down/left/right)
White Field Chromaticity (White Field Chroma): X: 0.313; Y: 0.329
White Field Variation (White Field Dynamic): 1.25 (9 points)
Scanning Frequency (Scanning Frequency): 60Hz
Reverse Scanning (Reverse Scan): No
Signal Type Category (The kind of Singnal): LVDS
Interface Type (Interface): LVDS
Signal Interface Definition (Singnal Interface Definition): BLE-6PINS-CCAACC
Panel Driving Voltage (Drive-screen voltage): 5.0V
Panel Input Current (Input Current): 1.13A
Signal Interface Type (Kind of Singnal Interface): Terminal
Signal Interface Brand (Brand of Singnal Interface): E&T
Signal Interface Model (Model of Singnal Interface): AL230F-A0G1D-P
Signal Interface Pin Pitch (Pitch of Singnal Interface): 1 mm
Number of Signal Interface Pins (Pin of Singnal Interface): 6 pins
T215HVN01.1 Structural Parameters
Operating Temperature (Operation Temperature): 0 °C ~ 50 °C
Storage Temperature (Storage Temperature): -20°C ~ 60°C
Surface Treatment (Surface Technology): Matte surface, Hard coating (3H)
Display Area (Active Area): 476.64×268.11 mm
Visible Area (Display Area): 479.84×271.31
External Dimensions (Outline): 495.6×292.2 mm
Touch Screen (Touch Panel): None
Lamp Position (Lamp Position): Side-in type light source (right side)
Backlight Type (Backlight): WLED
Number of Lamps (Lamp Number): 12S4P pcs
Lamp Shape (Lamp Shape): 4 strings
Backlight Life (Life Time of Lamp): 30,000 Hours
Voltage of a Single Lamp (Voltage of Lamp): 38.4V
Current of a Single Lamp (Current of Lamp): 65mA
Built-in Lamp Driver (Driver of Backlight): None
Backlight Interface Type (Kind of Backlight Interface): Terminal
Backlight Interface Brand (Brand of Backlight Interface): E&T
Backlight Interface Model (Model of Backlight Interface): 3707K-S06N-21R
Number of Backlight Interfaces (Quantity of Backlight Interface): 1 pcs
Backlight Interface Pin Pitch (Pitch of Backlight Interface): 1.0 mm
Backlight Interface Definition (Backlight Interface Define ): BLE-6PINS-CCAACC

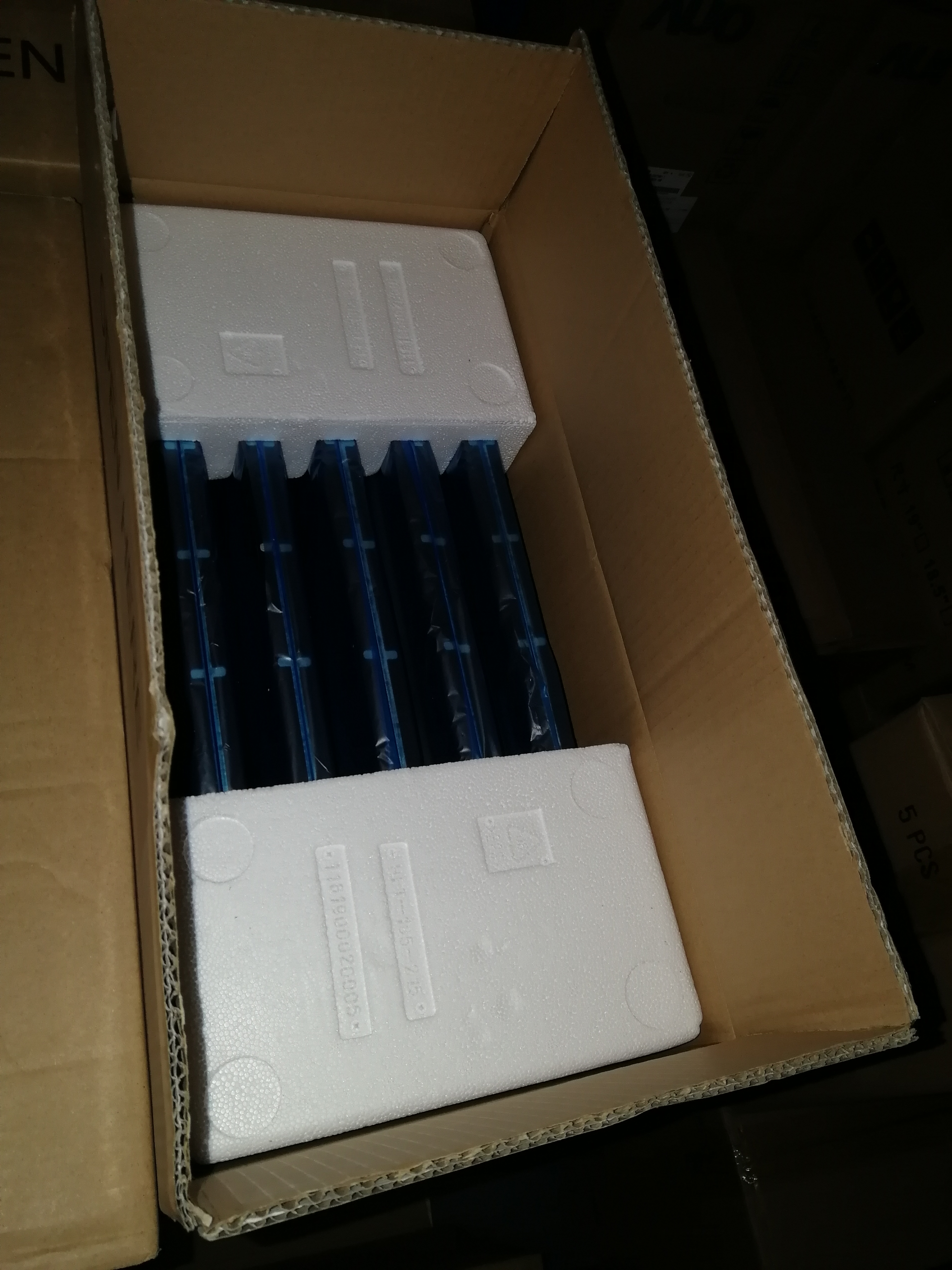

T215HVN01.1 Packaging and Production Status
Quantity per Box (Quantity Per Box): 13 pcs
Size of the Packaging Box (Size of the Box): 556×292×375 mm (Length×Width×Height)
Gross Weight of the Packaging Box (G.W. of the Box): 25.7 Kgs

G150XVN01.0原装

LQ150X1LG92原装

M170ETN01.1原装+组装
P170ETN01.0原装
M190ETN01.0原装+组装
G190ETN01.0原装+组装
G190ETN01.1原装
G156HTN02.1原装
M185XTN01.2组装
M190PW01 V8 组装
P215HVN01.0原装
T215HVN01.1玻璃+组装,
HR215WU1-120原装
P270HⅤN02.0原装+组装
P320HVN02.0原装
LC320EUJ-FFE2组装
T320HVN05.6组装
HV320FHB-F40玻璃+模组
T420HVN08.0原装
LC430EGG-FKM1原装

友达 (AUO) 推出的T215HVN01.1是一款采用a-Si TFT-LCD技术的21.5英寸液晶模组产品,它装配有WLED背光,无背光驱动,无触摸。屏库总结它的典型特征为: 白光LED背光,端子正装,表面雾面, TCO 7.0 Compliance。它的工作温度为 0 ~ 50°C,存储温度为 -20 ~ 60°C,耐振动性为1.5G (14.7 m/s²)。此型号推荐使用于电脑显示器电视。根据屏库掌握的情报此产品于2014年Q4量产,当前生产状态为量产中。目前T215HVN01.1在屏库上有58条现货信息、59家供应商信息,属于目前屏库市场交易的主力型号产品。屏库于2014年11月11日对此型号首次建立参数,并于2020年10月22日对参数进行了最后更新。作为一款VA,常黑显示,透射式液晶模组产品,T215HVN01.1可以提供250 cd/m²的显示亮度 3000:1的透射对比度,以及89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)的可视角度,最佳观看角度为全视角,它的响应时间为13/5 (Typ.)(Tr/Td) ms。由于每个像素点采用了8-bit灰阶信号,此产品可以显示16.7M颜色,其显示的色彩饱和度也达到了74% (NTSC)。背光方面此产品采用了15S4P WLED发光的侧入式光源(底部),光源的使用寿命为30K小时,不含背光驱动。T215HVN01.1采用了LVDS (2 ch, 8-bit)信号接口,总共30 pins,采用端子连接,驱屏电压为5.0V (Typ.)。它的典型垂直刷新率Fv为60Hz。如果开发新产品想采用T215HVN01.1液晶模组,屏库®建议您向友达 (AUO)或其代理商了解关于T215HVN01.1的最新的生产状态信息和技术信息。屏库®上所显示的面板参数均由屏库电子工程师依据规格书录入,已尽力减少错误,但不能保证参数的完全正确。请以规格书为准!

T215HVN01.1 基本参数

制造商(Productor) 友达/AUO
产品型号(MODEL) T215HVN01.1
屏尺寸(Size) 21.5"
分辨率(Resolution) 1920×1080
分辨率简称(Resolution Name) FHD
显示比例(Display scale) 16:9
像素排列(Pixel Arrangement) RGB垂直条状
点距(Pixel Pitch) 0.08275×0.24825 mm
产品组成(Panel Composition) 液晶屏,
面板类型(Technology) a-Si TFT-LCD
主要用途(Applications) 【电脑显示器】,
显著特征(Panel Features) 【广色域】【白光LED】【雾面】【广视角】

T215HVN01.1光电参数

显示模式(Display mode) TN,常白显示,透射式
亮度(Luminance) 250 nits
对比度(Contrast Ratio) 3000:1
颜色(Color) 16.7M
色彩饱和度(Color Saturation) 72%NTSC(CIE1931)
响应时间(Response) 3.8/1.2 (Tr/Td) ms
可视角度(Viewing Angle) 89/89/89/89(上/下/左/右)
白场色度(White Field Chroma) X:0.313; Y:0.329
白场变动(White Field Dynamic) 1.25 (9 points)
扫描频率(Scanning Frequency) 60Hz
反转扫描(Reverse Scan) No
信号类型大类(The kind of Singnal) LVDS
接口类型(Interface) LVDS
信号接口定义(Singnal Interface Definition) BLE-6PINS-CCAACC
驱屏电压(Drive-screen voltage) 5.0V
面板输入电流(Input Current) 1.13A
信号接口类型(Kind of Singnal Interface) 端子
信号接口品牌(Brand of Singnal Interface) E&T
信号接口型号(Model of Singnal Interface) AL230F-A0G1D-P
信号接口脚距(Pitch of Singnal Interface) 1 mm
信号接口脚数(Pin of Singnal Interface) 6 pins

T215HVN01.1结构参数

工作温度(Operation Temperature) 0 °C ~ 50 °C
存储温度(Storage Temperature) -20°C ~ 60°C
表面处理(Surface Technology) 雾面,Hard coating (3H)
显示区域(Active Area) 476.64×268.11 mm
可视区域(Display Area) 479.84×271.31
外形尺寸(Outline) 495.6×292.2 mm
触摸屏(Touch Panel)
灯管位置(Lamp Position) 侧入式光源(右边)
背光类型(Backlight) WLED
灯管数量(Lamp Number) 12S4P pcs
灯管形状(Lamp Shape) 4串
背光寿命(Life Time of Lamp) 30K Hours
单一灯管电压(Voltage of Lamp) 38.4V
单一灯管电流(Current of Lamp) 65mA
内置灯管驱动器(Driver of Backlight)
背光接口类型(Kind of Backlight Interface) 端子
背光接口品牌(Brand of Backlight Interface) E&T
背光接口型号(Model of Backlight Interface) 3707K-S06N-21R
背光接口数量(Quantity of Backlight Interface) 1 pcs
背光接口脚距(Pitch of Backlight Interface) 1.0 mm mm
背光接口定义(Backlight Interface Define ) BLE-6PINS-CCAACC

T215HVN01.1包装及生产状态

每箱数量(Quantity Per Box) 13pcs
包装箱尺寸(Size of the Box) 556×292×375 mm (长×宽×高)
包装箱毛重(G.W. of the Box) 25.7 Kgs
